FLAG 3.0-3.5 ton CPCD(PD—B) series diesel forklift
• It adopts a well‑engineered body and premium powertrain with Isuzu, Mitsubishi, Xinchai, Quanchai engines and Japanese‑level transmission.
• Featuring high‑performance Shimadzu equivalent hydraulics for rapid lifting and steering, OPS and seat switch for safe operation, plus optional powertrain suspension.
• Its 90° opening engine hood allows easy maintenance and quick transmission oil‑filter replacement.

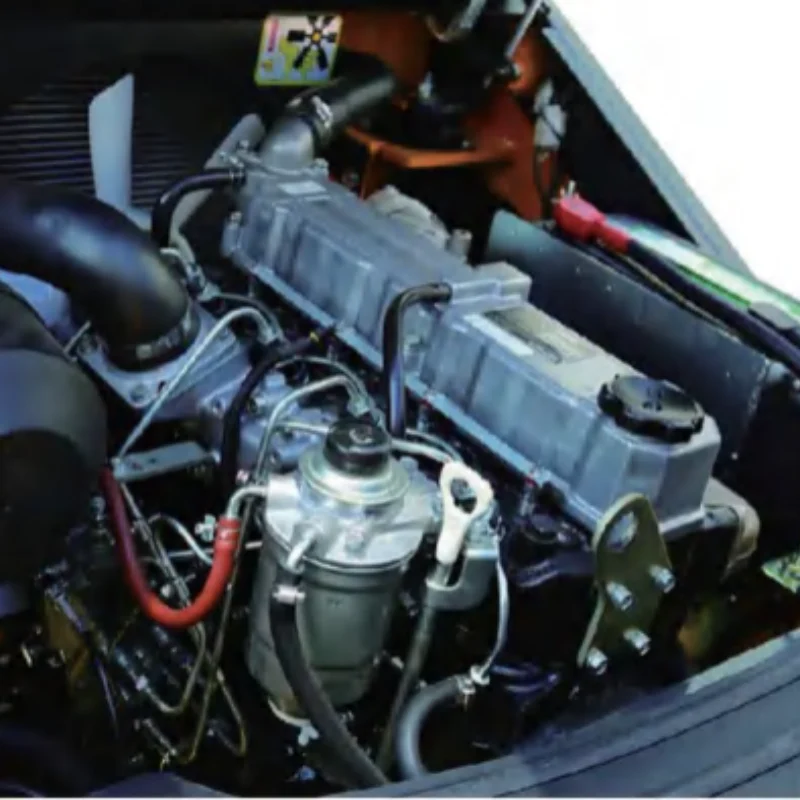

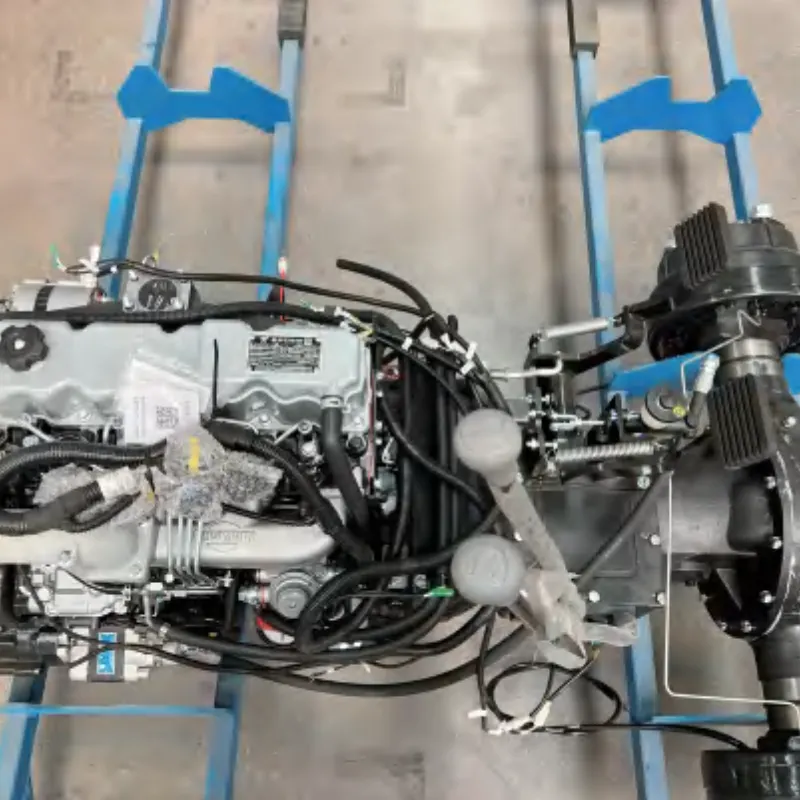

• Scientific design and manufactured truck body combines superior power train makes the forklift outstanding in performance and operation. The power train includes the well-known engines like Isuzu, Mitsubishi, Xinchai, Quanchai and Japanese level technology transmission.
• Reliable hydraulic system adopts Japanese Shimadzu valve and pump or other brands with similar quality level, it ensures the high lifting and steering speed.
• OPS, Seat switch ensures a safe operation.
• Power train suspension is available as option.
• 90 degrees engine hood makes daily maintenance much easier, all parts can be reached quickly.
• Convenient replace of transmission oil filter.
| Specifications |
1.1 | Manufacturer | FLAG | FLAG | |
| 1.2 | Model Designation | CPCD30(PD 30B) | CPCD35(PD 35B) | ||
| 1.3 | Power Type: Diesel-LPG | Diesel/LPG | Diesel/LPG | ||
| 1.4 | Operation Type: Hand‑stand on‑Driver seated | Driver seated | Driver seated | ||
| 1.5 | Load Capacity | Q(kg) | 3000 | 3500 | |
| 1.6 | Load Barycenter Distance | C(mm) | 500 | 500 | |
| 1.8 | Axle Centre to Fork Face | X(mm) | 484 | 484 | |
| 1.9 | Wheel Base | Y(mm) | 1760 | 1760 | |
| Weight |
2.1 | Service Weight | kg | 4240 | 4600 |
| 2.2 | Axle Weight with Rated Load Front/Rear | kg | 6400/840 | 7180/920 | |
| 2.3 | Axle Weight without Load Front/Rear | kg | 1680/2560 | 1620/2980 | |
| Wheels and Tyres |
3.1 | Tyres: SE‑Super Elastic PN‑Pneumatic | PN | PN | |
| 3.2 | Front Tyres Size | 28×9‑15‑14PR | 28×9‑15‑14PR | ||
| 3.3 | Rear Tyres Size | 6.50‑10‑10PR | 6.50‑10‑10PR | ||
| 3.6 | Front Track Width | b10(mm) | 1000 | 1000 | |
| 3.7 | Rear Track Width | b11(mm) | 970 | 970 | |
Dimensions and Overall Sizes |
4.1 | Mast Lift, Forward/Backward | α/β (Grad) | 6°/12° | 6°/12° |
| 4.2 | Mast Minimum Overall Height | h1(mm) | 2080 | 2225 | |
| 4.3 | Free Lift | h2(mm) | 100 | 100 | |
| 4.4 | Lift Height | h3(mm) | 3000 | 3000 | |
| 4.5 | Mast Maximum Overall Height | h4(mm) | 4270 | 4275 | |
| 4.7 | Overhead Guard Height | h6(mm) | 2108 | 2108 | |
| 4.8 | Seat Height | h7(mm) | 1100 | 1100 | |
| 4.12 | Drawbar Height | h10(mm) | 310 | 310 | |
| 4.19 | Overall Length | l1(mm) | 3865 | 3905 | |
| 4.20 | Length to Face of Forks | l2(mm) | 2795 | 2835 | |
| 4.21 | Overall Width | b1(mm) | 1240 | 1240 | |
| 4.22 | Fork Arms Dimensions | s/e/l(mm） | 45/125/1070 | 50/125/1070 | |
| 4.23 | Fork Carriage in Compliance with ISO 2328 Class/Form A,B | A | A | ||
| 4.24 | Fork Carriage Width | b3(mm） | 1100 | 1100 | |
| 4.31 | Ground Clearance below Mast(with Load) | m1(mm) | 115 | 115 | |
| 4.32 | Ground Clearance Centre of Wheelbase(with Load) | m2(mm) | 132 | 132 | |
| 4.34.1 | Aisle Width with Pallet 1000×1200 and Fork Arms Pitch 1200 | Ast(mm) | 4280 | 4320 | |
| 4.34.2 | Aisle Width with Pallet 1000×1200 and Fork Arms Pitch 1200 | Ast(mm) | 4480 | 4520 | |
| 4.35 | Turning Radius | Wa(mm) | 2600 | 2635 | |
| 4.36 | Turning Point Minimum Distance from the Truck Center Line | b13(mm) | 810 | 810 | |
| Performance |
5.1 | Drive Speed with/without Load | km/h | 19/19.5 | 18/19 |
| 5.2 | Lifting Speed with/without Load | mm/s | 440/485 | 455/485 | |
| 5.3 | Lowering Speed with/without Load | mm/s | 515/455 | 450/460 | |
| 5.6 | Drawbar Pull Tractive Effort (at 2km/h) with/without Load | N | 25000/14000 | 25000/14000 | |
| 5.8 | Gradeability (at 2km/h) with/without Load | % | 20 | 20 | |
| 5.10 | Service Brake | Mechanical/Hydraulic | Mechanical/Hydraulic | ||
| Engines |
7.1 | Engine Manufacturer/Engine Type |
WP3.2G50E311 2200rpm |
WP3.2G50E311 2200rpm |
|
| 7.2 | Engine Power in Compliance with ISO 1585 | kW | 36.8 | 36.8 | |
| 7.3 | Rated Number of Revolutions | r/min | 2200 | 2200 | |
| 7.4 | Cylinder Number/Displacement | cm³ | 4/3200 | 4/3200 | |
| 7.5 | Fuel Consumption in Compliance with VDI‑Cycle | L/h | 3.9L/h | 3.9L/h | |
| 7.5 | On‑board Voltage | V | 12 | 12 | |
| 8.1 | Drive Control Type | Hydraulic Automatic Transmission | Hydraulic Automatic Transmission | ||
| Others | 10.1 | Service Pressure for Attachments | bar | ‑ | ‑ |
| 10.2 | Oil Flow Rate for (Max.Available) | L/min | ‑ | ‑ | |
| 10.4 | Volume Fuel Tank | L/kg | 52/45 | 52/45 | |
| 10.7 | Noise at Operator's Ear | db(A) | ‑ | ‑ | |
| 10.8 | Drawbar, Model/Type DIN | Pin | Pin |
Yes. Our 3‑stage masts are available in regular customer options: 4m, 4.5m, 4.8m, 5m, 5.5m and 6m lifting heights.
Our fastest production lead time is 2 weeks for standard configurations. Lead‑time for custom items such as special masts will be subject to specific specifications. Please contact our sales team to confirm the exact delivery schedule for your order.
Yes, both electronic‑hydraulic and manual‑mechanical versions are available. You may select based on your actual operation requirements.
