FLAG 2.0-3.0 ton CBD-W series electric pallet truck
• Features 1500 KGS / 2000 KGS capacity, lithium battery powered for efficient material handling, ideal replacement for hand pallet truck.

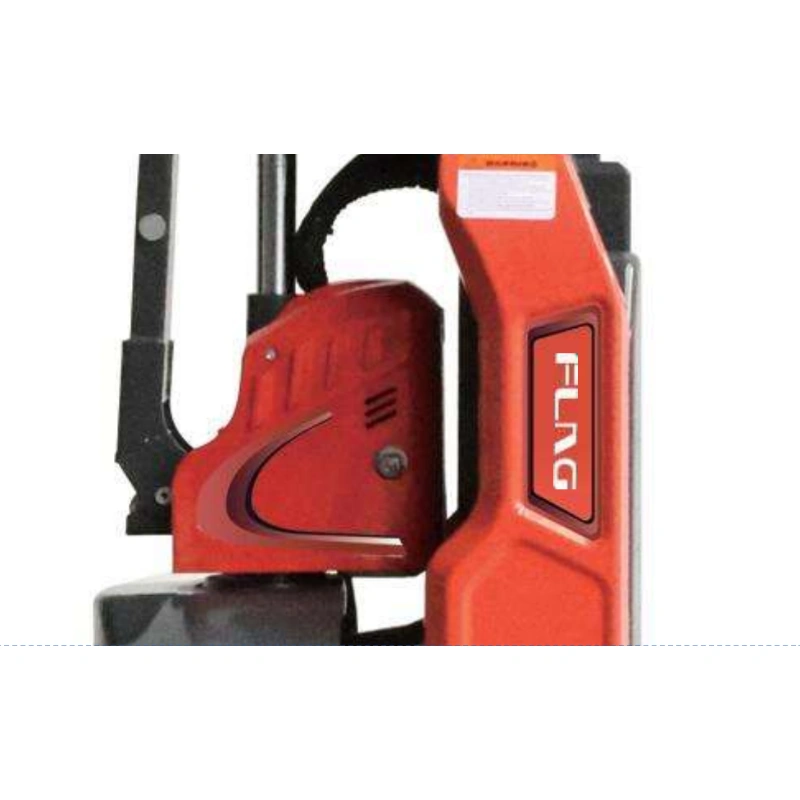

• 4mm thick motor cover protects internal motor and wiring.

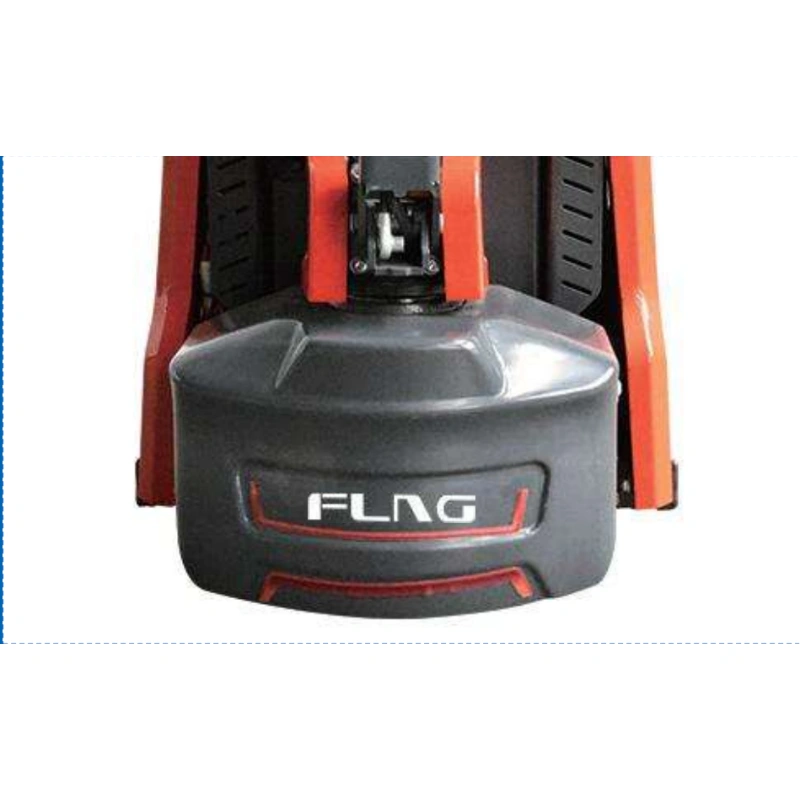

• ABS dustproof plastic shell keeps controller and wiring neat.
• Replaceable battery enables convenient charging.
• Balance roller available as an option.
• Capacity: 1500 KGS / 2000 KGS, lithium battery powered for efficient material handling, perfect alternative for hand pallet truck.
• 4mm thick motor cover protects internal motor and wiring device.
• ABS dustproof plastic shell keeps internal controller and wiring neat.
• Offers optional balance roller to satisfy diverse operational needs.

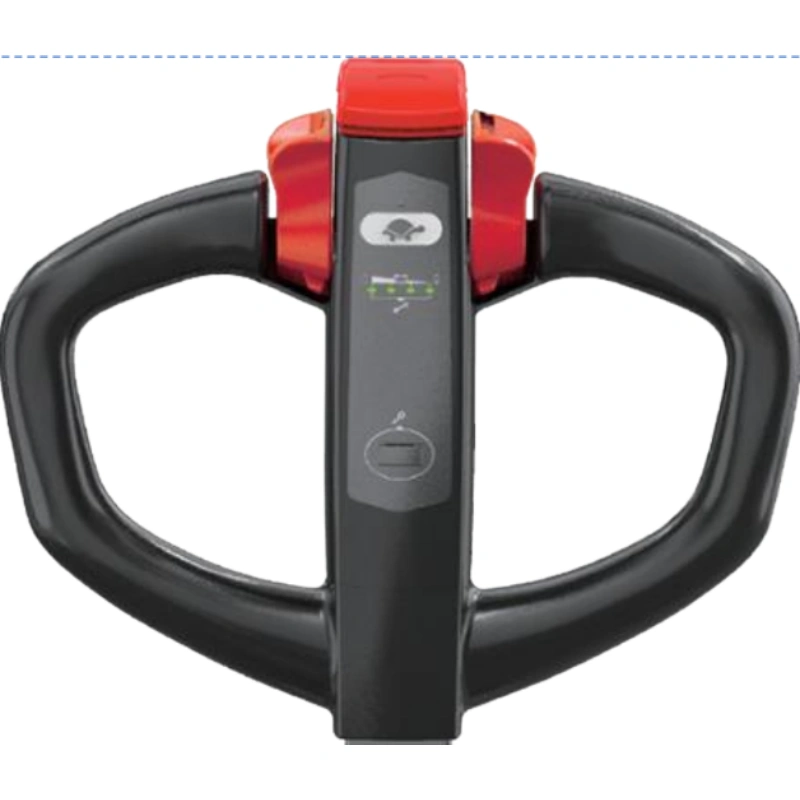

• Equipped with turtle speed, emergency reverse, horn and battery indicator for safe operation.
• Magnetic movable key and optional pin-code handle enhance operational safety.
• Replaceable battery enables convenient charging.
| Distinguishing mark | 1.1 | Model | CBD15(MT15V) | CBD20(MT20V) | |
| 1.3 | Power(battery,diesel,petrol gas,manual) | Battery | |||
| 1.4 | Operator type | Pedestrian | |||
| 1.5 | Load capacity / Rated load | Q(t) | 1.5 | 2.0 | |
| 1.6 | Load centre distance | C(mm) | 600 | ||
| 1.8 | Load distance,centre of drive axle to fork | X(mm) | 950 | ||
| 1.9 | Wheelbase | Y(mm) | 1270 | ||
| Weight | 2.1 | Service weight | kg | 142 | 145 |
| 2.2 | Axle loading, laden front/rear | kg | 828/1326 | ||
| 2.3 | Axle loading, unladen front/rear | kg | 100/34.5 | ||
| Tires, chassis | 3.1 | Tires | PU | ||
| 3.2 | Tire size, front | Φ*w(mm) | Φ210×75 | ||
| 3.3 | Tire size, rear | Φ*w(mm) | Φ80×70 | ||
| 3.4 | Additional wheels(dimensions) | Φ*w(mm) | \ | ||
| 3.5 | Wheels, number front/rear(x=driven wheels) | 1x/4 | |||
| Dimensions | 3.6 | Tread, front | b₁₀(mm) | \ | |
| 3.7 | Tread, rear | b₁₁(mm) | 390/525 | ||
| 4.4 | Lift height | h₃(mm) | 110 | ||
| 4.9 | Height of tiller in drive position min./max. | h₁₄(mm) | 585/1250 | ||
| 4.15 | Height, lowered | h₁₃(mm) | 85 | ||
| 4.19 | Overall length | l1(mm) | 1620 | ||
| 4.20 | Length to face of forks | l2(mm) | 470 | ||
| 4.21 | Overall width | b₁(mm) | 550 | ||
| 4.22 | Fork dimensions | s/e/l(mm) | 50/160/1150 | ||
| 4.25 | Distance between fork-arms | b5(mm) | 550/685 | ||
| 4.32 | Ground clearance, centre of wheelbase | m₂(mm) | 35 | ||
| 4.33 | Aisle width for pallets 1000×1200 crossways | Ast(mm) | 1820 | ||
| 4.34 | Fork dimensions | Ast(mm) | 1870 | ||
| 4.35 | Turning radius | Wa(mm) | 1380 | ||
| Performance | 5.1 | Travel speed, laden/ unladen | km/h | 4.2/4.5 | |
| 5.2 | Lift speed, laden/ unladen | m/s | 0.017/0.02 | ||
| 5.3 | Lowering speed, laden/ unladen | m/s | 0.04/0.04 | ||
| 5.8 | Gradability, laden/ unladen | % | 6/10 | ||
| 5.10 | Service brake | Electromagnetic | |||
| Motors | 6.1 | Drive motor rating S2 60min | kw | 0.9 | |
| 6.2 | Lift motor rating at S3 10% | kw | 0.5 | ||
| Additional data | 6.3 | Battery acc. to DIN 43531/35/36 A,B,C,no | \ | ||
| 6.4 | Battery voltage, nominal capacity K5 | V/Ah |
24/20 |
48/15 | |
| 6.5 | Battery weight (minimum) | kg | 5.5 | ||
| 6.6 | Energy consumption acc. to VDI cycle | KWh/h | \ | ||
| 8.1 | Type of drive control | - | DC speed control | ||
| 8.4 | Sound level at driver's ear acc. to EN 12053 | dB(A) | ≤70 | ||
Multiple battery specifications are optional for MT15V and MT20V. We can upgrade to higher‑capacity battery to extend working time. Remaining power can be viewed via battery indicator.
Standard fork dimension is 50/60/1150mm. Custom fork length and width are available for special‑size pallets. Please send your pallet dimension for technical evaluation.
Its compact design gives small turning radius. The required working aisle width is about 1520 mm. It is well‑suited for small warehouses, retail back‑rooms and other tight‑space material‑handling scenarios.
