FLAG 1.2-2.0t CDD-W series rider electric pallet stacker
• Features 1600/2000 KGS load capacity and max 6m lift height, ideal for stacking in warehouses, retail and factory sites.
• Built with heavy-duty one-piece solid forks and versatile control functions.
• Powered by lead-acid battery, Li-ion battery optional.
• Equipped with accessible emergency button and safety guardrail to protect operators.
• Capacity: 1600/2000 KGS, lift height up to 6 meters, powered by lead-acid battery (Li-ion battery optional). Suitable for warehouse short-distance stacking operation.

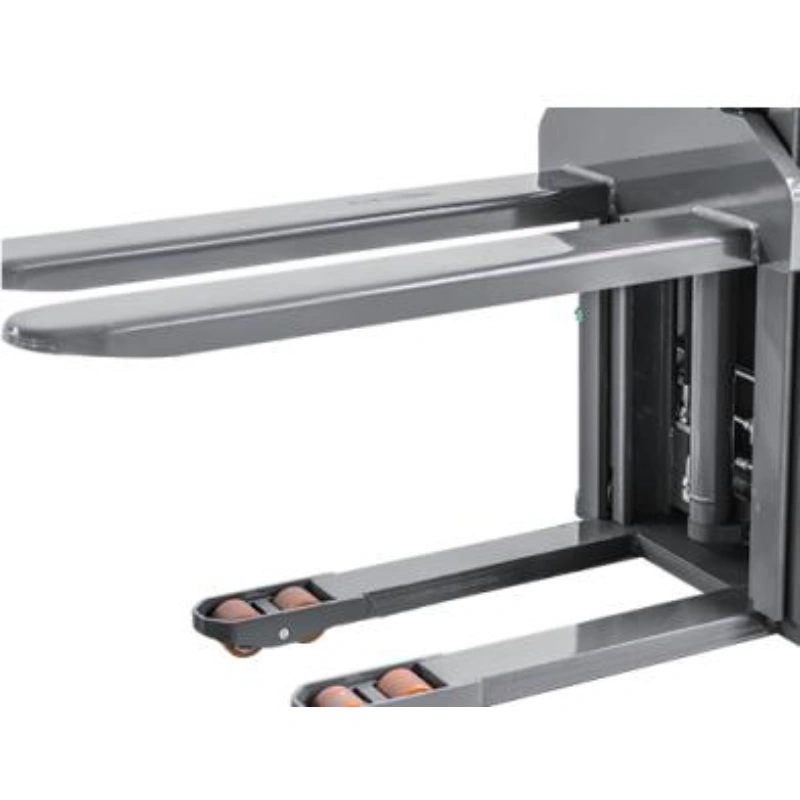

• Solid metal fork with one-piece punching forming and reinforced steel plate at fork roots, enhances fork rigidity and load-bearing capacity.
• Multiple operation functions: emergency reverse, horn, lifting & lowering, drive control, turtle speed.

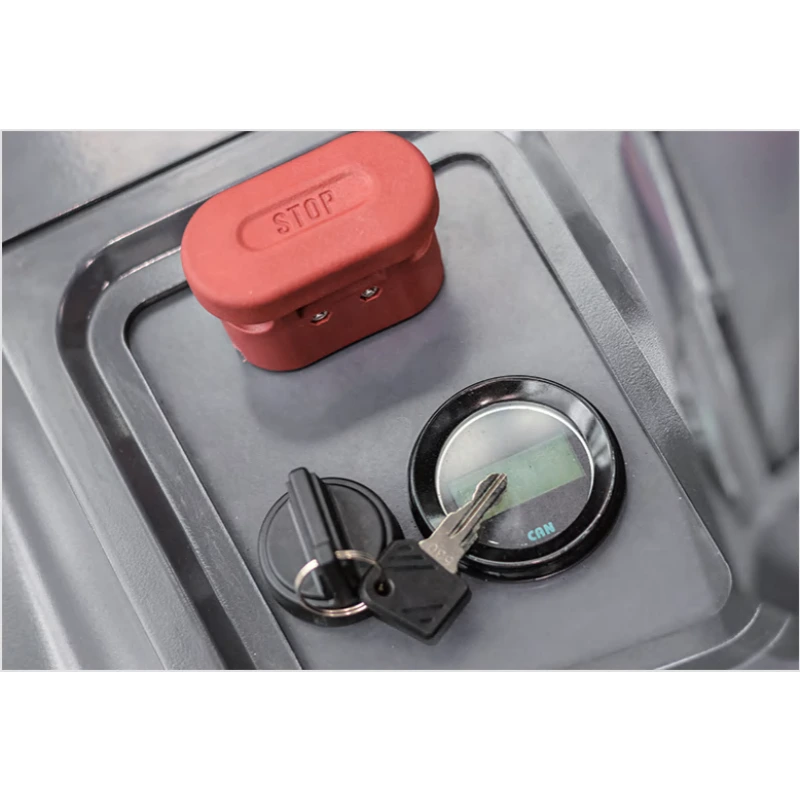

• Emergency button within easy reach for quick control, assuring safety for operator and vehicle.

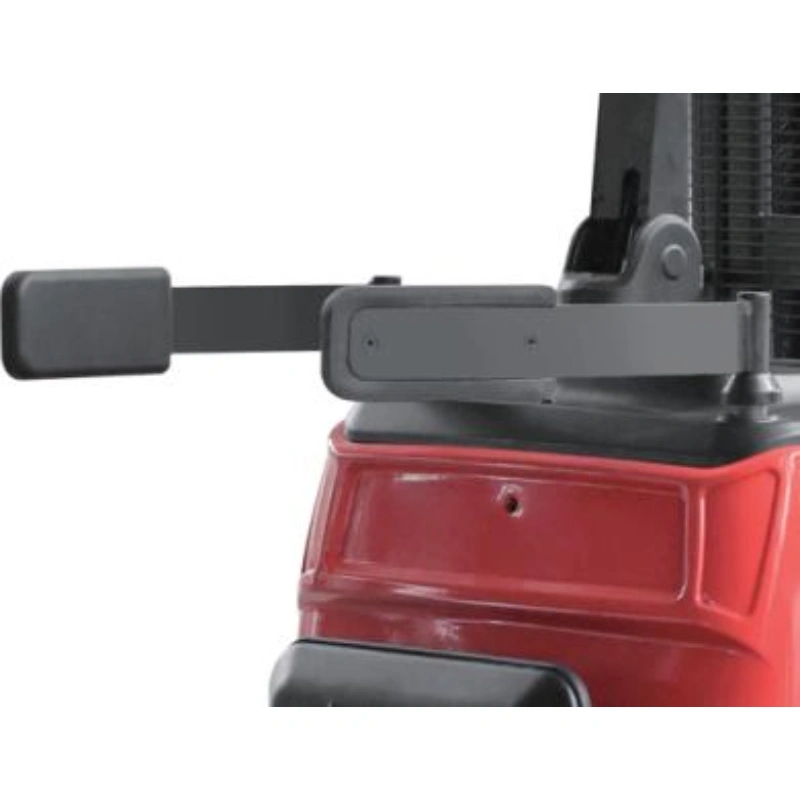

• Safety guardrail increases security and protects the safety of users.
• Lead-acid battery drive with short charging time and long service life; Li-ion battery optional.
| Distinguishing mark | 1.1 | Model | CDD16(ES16S) | CDD20(ES20S) | |
| 1.3 | Power (battery, diesel, petrol, gas, manual) | Battery | Battery | ||
| 1.4 | Operator type | Ride-control | Ride-control | ||
| 1.5 | Load capacity / Rated load | Q(t) | 1.6 | 2.0 | |
| 1.6 | Load centre distance | C(mm) | 600 | 600 | |
| 1.8 | Load distance, centre of drive axle to fork | X(mm) | 620 | 620 | |
| 1.9 | Wheelbase | Y(mm) | 1350 | 1350 | |
| Weight | 2.1 | Service weight | kg | 1250 | 1250 |
| 2.2 | Axle loading, laden front/rear | kg | / | / | |
| 2.3 | Axle loading, unladen front/rear | kg | / | / | |
| Tires, chassis | 3.1 | Tires | PU | PU | |
| 3.2 | Tire size, front | Ø×w(mm) | Ø250×70 | Ø250×70 | |
| 3.3 | Tire size, rear | Ø×w(mm) | Ø80×70 | Ø80×70 | |
| 3.4 | Additional wheels(dimensions) | Ø×w(mm) | Ø110×55 | Ø110×55 | |
| 3.5 | Wheels, number front/rear(x=driven wheels) | 1×+2/4 | 1×+2/4 | ||
| 3.6 | Track, front | b10(mm) | 625 | 625 | |
| 3.7 | Track, rear | b11(mm) | 410/525 | 410/525 | |
| Dimensions | 4.2 | Lowered mast height | h1(mm) | 1840 | 1840 |
| 4.3 | Free Lift height | h2(mm) | 1330 | 1330 | |
| 4.4 | Lift height | h3(mm) | 4000 | 4000 | |
| 4.5 | Extended mast height | h4(mm) | 4480 | 4480 | |
| 4.9 | Height of tiller in drive position min./max. | h14(mm) | / | / | |
| 4.15 | Height, lowered | h13(mm) | )90 | 90 | |
| 4.19 | Overall length | l1(mm) | 2080 | 2080 | |
| 4.20 | Length to face of forks | l2(mm) | 930 | 930 | |
| 4.21 | Overall width | b1(mm) | 820 | 820 | |
| 4.22 | Fork dimensions | s/e/l(mm) | 60/160/1150 | 60/160/1150 | |
| 4.25 | Distance between fork-arms | b5(mm) | 570/685 | 570/685 | |
| 4.32 | Ground clearance, centre of wheelbase | m2(mm) | 30 | 30 | |
| 4.33 | Aisle width for pallets 1000×1200 crossways | Ast(mm) | 2470 | 2470 | |
| 4.34 | Aisle width for pallets 800×1200 lengthways | Ast(mm) | 2465 | 2465 | |
| 4.35 | Turning radius | Wa(mm) | 1560 | 1560 | |
| Performance data | 5.1 | Travel speed, laden/unladen | km/h | 5.5/5.8 | 5.5/5.8 |
| 5.2 | Lift speed, laden/unladen | m/s | 0.10/0.12 | 0.10/0.12 | |
| 5.3 | Lowering speed, laden/unladen | m/s | 0.12/0.1 | 0.12/0.1 | |
| 5.8 | Max. gradeability, laden/unladen | % | 5/8 | 5/8 | |
| 5.10 | Service brake | Electromagnetic | Electromagnetic | ||
| Electric engine | 6.1 | Drive motor rating S2 60min | kW | 1.5(2/AC) | 1.5(2/AC) |
| 6.2 | Lift motor rating S3 45% | kW | 2.2/3 | 2.2/3 | |
| 6.3 | Battery acc. to DIN 43531/35/36 A, B, C, no | / | / | ||
| 6.4 | Battery voltage, nominal capacity K5 | V/Ah | 24/210(270)/24(150,175,200,230) | 24/210(270)/24(150,175,200,230) | |
| 6.5 | B Battery weight ±5% | kg | 200/250 | 200/250 | |
| 6.6 | Energy consumption acc：to VDI cycle | kWh/h | / | / | |
| Additional data | 8.1 | Type of drive control | AC speed control | AC speed control | |
| 8.4 | Sound level at driver's ear acc. to EN 12053 | dB(A) | 69 | 69 |
Multiple 24V lithium‑ion / lead‑acid battery capacities are optional. Higher‑capacity battery can be selected for full‑shift continuous stacking work. Battery level is displayed on the handle‑mounted indicator.
Duplex and triplex masts are available, custom lifting height from 1600mm up to 4000mm. Residual load will decrease with higher lifting height. Please check the official load curve for real‑world working capacity.
It adopts quick‑release hydraulic connectors for easy component replacement. Main electric parts are easily accessible without complex disassembly, which helps your service team complete routine repair quickly.
