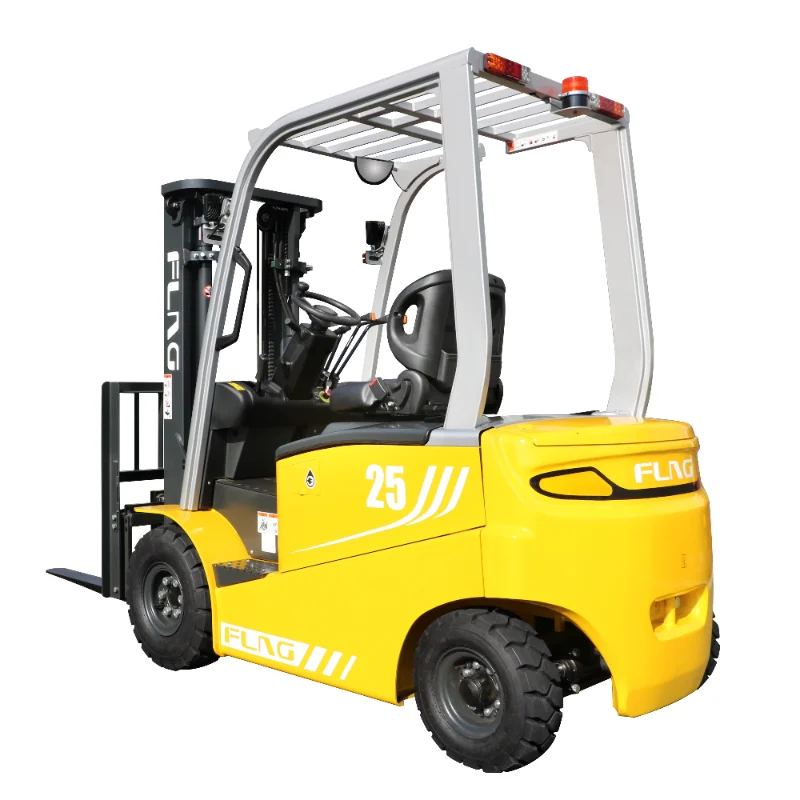

FLAG 2-3.8 ton CPD(PF-A) series lithium battery forklift

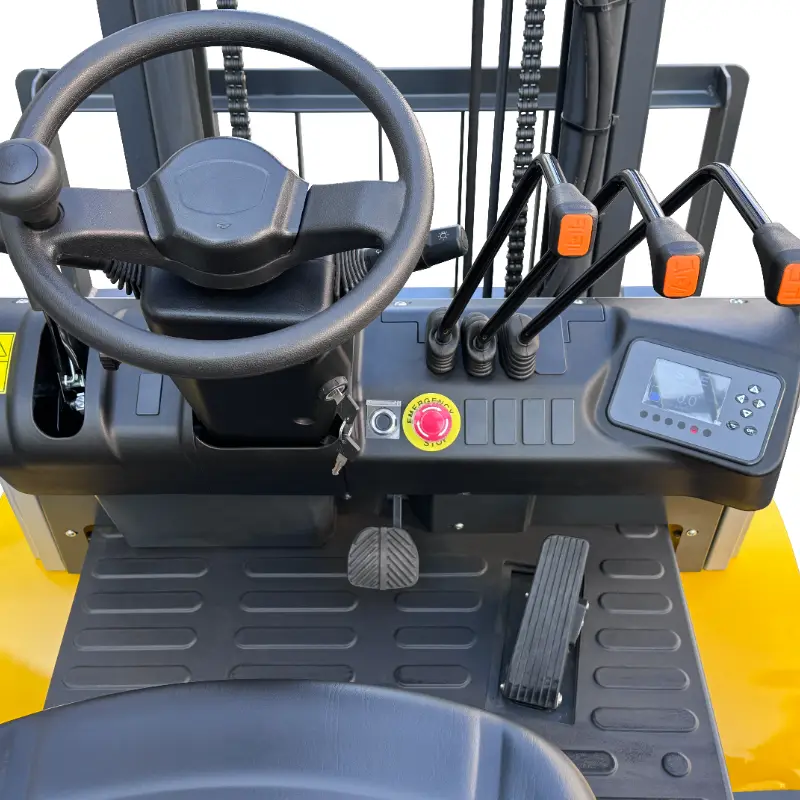

• Superior ergonomics: colour display, 300mm compact steering wheel, tilt steering column and optional armrest joystick.
• Safe and reliable: compact body for narrow aisles, hydraulic steering axle (up to 85°), IPX4 dust/water resistance, auto hydraulic lock system.
• Easy maintenance: user-friendly structure with IPX4 protection and hydraulic locking system.

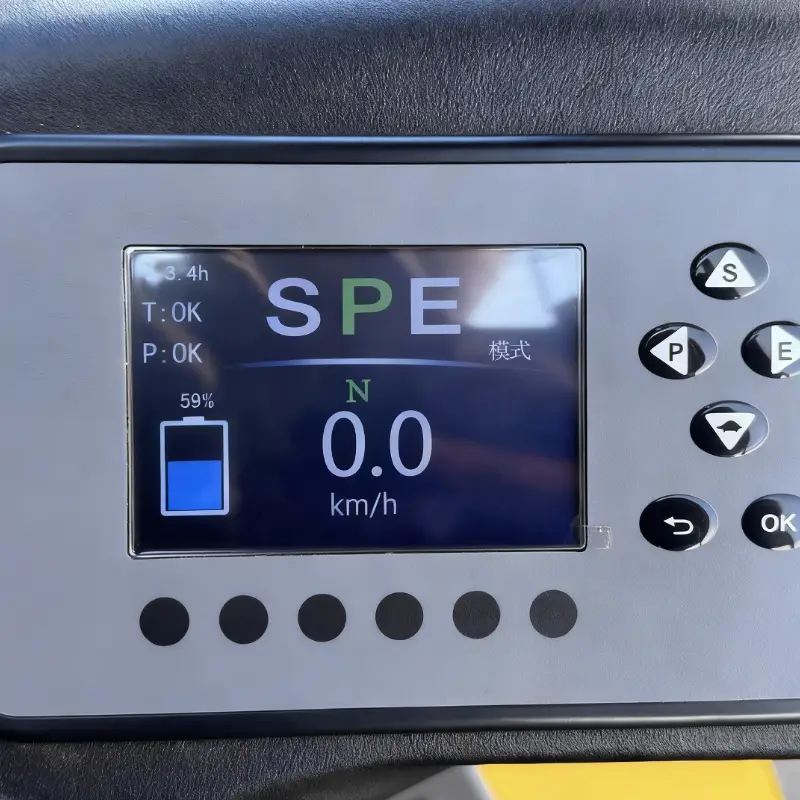

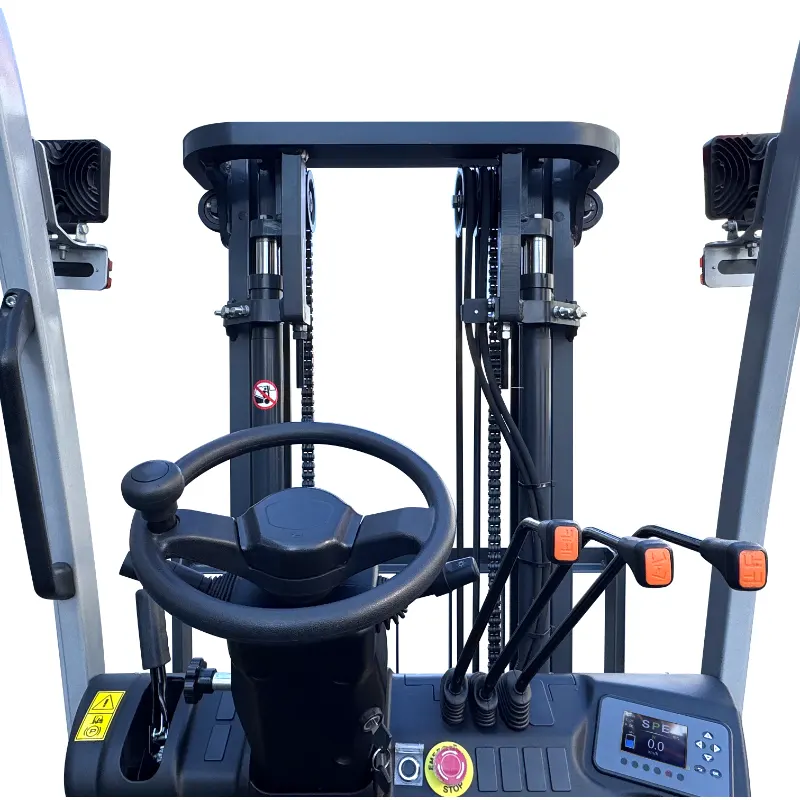

• Colour display provides important information about vehicle movement, lifting and other information, which helps to improve the driver's work efficiency.
• Smaller steering wheel (300mm) is easy to operate and reduces the workload on the operator's arms and shoulders.
• Easy-to-operate steering column with tilt adjustment function. Optional advanced hydraulics Minlever and joystick with armrest are all new design gives more comfort to the operator.
• Tight dimensions allow the truck to work in narrow aisles.
• New hydraulic steering axle, with new axles that provide wider steering angles (up to nearly 85 degrees) and reduced turning radius
• Electrical sealing to IPX4 for dust and water resistance to prevent contamination-related failures.
• Hydraulic locking system that automatically locks all hydraulic functions and driveline without checking the drive.
• Tight dimensions allow the truck to work in narrow aisles.
• New hydraulic steering axle, with new axles that provide wider steering angles (up to nearly 85 degrees) and reduced turning radius.
• Electrical sealing to IPX4 for dust and water resistance to prevent contamination-related failures.
• Hydraulic locking system that automatically locks all hydraulic functions and driveline without checking the drive.
|
Identification |
1.1 |
Manufacturer |
|
FLAG |
FLAG |
FLAG |
FLAG |
FLAG |
|
1.2 |
Model |
|
CPD20(PF20A) |
CPD25(PF25A) |
CPD30(PF30A) |
CPD35(PF35A) |
CPD38(PF38A) |
|
|
1.2.1 |
|
|
|
|
|
|
|
|
|
1.3 |
Drive |
|
Electric |
Electric |
Electric |
Electric |
Electric |
|
|
1.4 |
Operator type |
|
Seated |
Seated |
Seated |
Seated |
Seated |
|
|
1.5 |
Load capacity / rated load |
Q (kg) |
2000 |
2500 |
3000 |
3500 |
3800 |
|
|
1.6 |
Load centre |
c (mm) |
500 |
500 |
500 |
500 |
500 |
|
|
1.8 |
Load distance, centre of support arm wheel to face of fork |
x (mm) |
435 |
435 |
485 |
485 |
487 |
|
|
1.9 |
Wheelbase |
y (mm) |
1525 |
1525 |
1700 |
1700 |
1700 |
|
|
Weight |
2.1 |
Service weight including battery |
(kg) |
3900 |
4200 |
5000 |
5300 |
5600 |
|
2.2 |
Axle load, mast extended with load, drive/support arm wheel |
(kg) |
5190/710 |
5810/790 |
6930/970 |
7750/1050 |
8450/950 |
|
|
2.3 |
Axle load, mast retracted without load, drive/support arm wheel |
(kg) |
1755/2145 |
1845/2355 |
2100/2900 |
2200/3100 |
2550/3050 |
|
|
Wheels |
3.1 |
Tyre |
|
Pneumatic |
Pneumatic |
F:P / R: SE |
F: P / R: SE |
Superelastic |
|
3.2 |
Wheel size, front |
|
23x9-10 |
23x9-10 |
28x9-15 |
28x9-15 |
250-15 |
|
|
3.3 |
Wheel size, rear |
|
18x7-8 |
18x7-8 |
18x7-8 |
18x7-8 |
200/50-10 |
|
|
3.5 |
Wheels, number front/rear (x=driven wheels) |
|
2X/2 |
2X/2 |
2X/2 |
2X/2 |
2X/2 |
|
|
3.6 |
Track width, front |
b10 (mm) |
968 |
968 |
1006 |
1006 |
1025 |
|
|
3.7 |
Track width, rear |
b11 (mm) |
956 |
956 |
956 |
956 |
960 |
|
|
Dimensions |
4.1 |
Tilt of fork, forward/backward |
α/β (°) |
6/10 |
6/10 |
6/10 |
6/10 |
6/10 |
|
4.2 |
Height, mast lowered |
h1 (mm) |
2030 |
2030 |
2100 |
2100 |
2200 |
|
|
4.3 |
Free lift |
h2 (mm) |
150 |
150 |
150 |
150 |
150 |
|
|
4.4 |
Lift height |
h3 (mm) |
3000 |
3000 |
3000 |
3000 |
3000 |
|
|
4.5 |
Height, mast extended |
h4 (mm) |
4050 |
4050 |
4200 |
4200 |
4225 |
|
|
4.7 |
Height of overhead guard (cabin) |
h6 (mm) |
2140 |
2140 |
2250 |
2250 |
2250 |
|
|
4.8 |
Seat height |
h7 (mm) |
1140 |
1140 |
1250 |
1250 |
1250 |
|
|
4.12 |
Height support arms |
h10 (mm) |
440 |
440 |
455 |
455 |
455 |
|
|
4.19 |
Overall length |
l1 (mm) |
3400 |
3400 |
3690 |
3690 |
3630 |
|
|
4.20 |
Length to face of forks |
l2 (mm) |
2330 |
2330 |
2620 |
2620 |
2540 |
|
|
4.21 |
Overall width |
b1 (mm) |
1200 |
1200 |
1250 |
1250 |
1260 |
|
|
4.22 |
Fork dimensions |
s/e/l (mm) |
40/120/1070 |
40/120/1070 |
50/125/1070 |
50/125/1070 |
50/125/1070 |
|
|
4.23 |
Fork carriage ISO 2328, class/type A,B |
|
2A |
2A |
3A |
3A |
3A |
|
|
4.24 |
Fork carriage width |
b3 (mm) |
1040 |
1040 |
1100 |
1100 |
1100 |
|
|
4.31 |
Ground clearance, with load, below mast |
m1 (mm) |
90 |
90 |
115 |
115 |
145 |
|
|
4.32 |
Ground clearance, centre of wheelbase |
m2 (mm) |
120 |
120 |
150 |
150 |
150 |
|
|
4.34.1 |
Aisle width for pallets 1000x1200 crossways |
Ast (mm) |
3934 |
3934 |
4135 |
4135 |
3935 |
|
|
4.34.2 |
Aisle width for pallets 800x1200 lengthways |
Ast (mm) |
3734 |
3734 |
3935 |
3935 |
4135 |
|
|
4.35 |
Turning radius |
Wa (mm) |
2100 |
2100 |
2380 |
2380 |
2380 |
|
|
Performance data |
5.1 |
Travel speed, with/without load |
(km/h) |
14/16 |
14/16 |
13/15 |
13/15 |
13/15 |
|
5.2 |
Lift speed, with/without load |
(m/s) |
0.35/0.45 |
0.35/0.45 |
0.35/0.5 |
0.35/0.5 |
0.3/0.4 |
|
|
5.3 |
Lowering speed, with/without load |
(m/s) |
0.4/0.45 |
0.4/0.45 |
0.4/0.45 |
0.4/0.45 |
0.42/0.44 |
|
|
5.5 |
Tractive force, with/without load |
(N) |
14000 |
14000 |
14000 |
14000 |
14000 |
|
|
5.7 |
Max. gradeability, with/without load |
(%) |
15/17 |
15/17 |
15/17 |
15/17 |
15/17 |
|
|
5.9 |
Acceleration time with/without load |
(s) |
6.5/6 |
6.5/6 |
6.7/6.2 |
6.8/6.3 |
6.9/6.4 |
|
|
5.10 |
Service brake |
|
Mechanical/Electric |
Mechanical/Electric |
Mechanical/Electric |
Mechanical/Electric |
Mechanical/Electric |
|
|
Electric motor |
6.1 |
Drive motor rating S2 60min |
(kW) |
15 |
15 |
15 |
15 |
15 |
|
6.2 |
Lift motor rating S3 15% |
(kW) |
22.6 |
22.6 |
22.6 |
22.6 |
22.6 |
|
|
6.3 |
Battery Type (DIN 43531/35/36, A/B/C/no) |
|
no |
no |
no |
no |
no |
|
|
6.4 |
Battery voltage, nominal capacity K5 |
(V/Ah) |
80/205 |
80/205 |
80/280 |
80/280 |
80/280 |
|
|
6.5 |
Battery weight |
(kg) |
1000~1100 |
1000~1100 |
1350~1500 |
1350~1500 |
>=180±5% |
|
|
Other |
10.1 |
Operating pressure for attachments |
(bar) |
160 |
160 |
180 |
180 |
180 |
|
10.2 |
Oil volume for attachments |
(l/min) |
35 |
35 |
38 |
38 |
38 |
|
|
10.7 |
Sound level at the driver's ear according to EN 12053 |
dB(A) |
<=75 |
<=75 |
<=75 |
<=75 |
<=75 |
Multiple lithium‑ion battery capacities are optional to match single‑shift or multi‑shift operations. The battery voltage and capacity can be configured according to customer working‑hour requirements. Real‑time battery status is displayed on the dashboard.
Standard lift height is 3000 mm. Duplex and triplex masts are available for selection, custom lifting heights ranging from 3000 mm to 6000 mm are supported. Please refer to the load curve to confirm residual load capacity under high‑lifting conditions.
It is equipped with complete battery protection including over‑voltage, over‑current and over‑temperature protection. IPX4 dust‑proof and water‑proof electrical sealing avoids failure caused by wet or dusty working environment.
