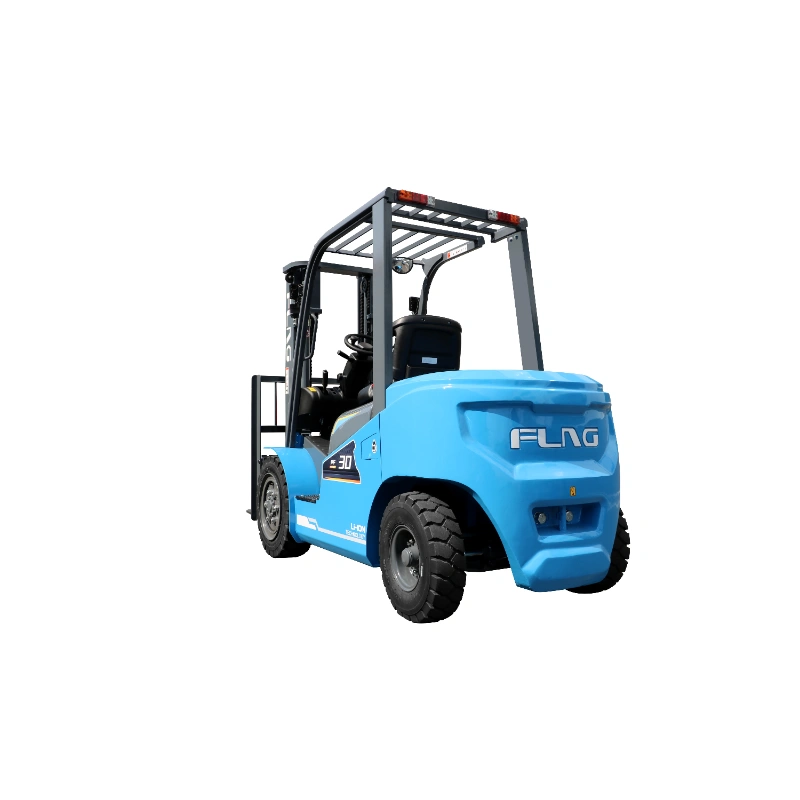

FLAG 2-3.8 ton CPD(PF‑D) series electric forklift
• Shared IC/electric platform, reinforced axles, reliable key components.
• Permanent magnet motor system saves energy; multiple modes and battery options.
• Spacious cabin, shock-absorbing seat, precise electric-hydraulic control.
• Full electrical protection, wide-vision guard, mast lowering buffer.
• Clear multi-functional display, high parts compatibility, maintenance-free lithium battery.
• Shared platform for internal combustion and electric models, mature and reliable, durable in harsh conditions.
• Integrated cast steering axle and reinforced drive axle extend the lifespan of axles and tires.
• Key components sourced from leading industry suppliers to ensure product reliability.
• Deep coordination of permanent magnet synchronous motor, battery, motor, and controller reduces energy consumption and improves work efficiency.
• Optimized vehicle performance with multiple operation modes to suit various working conditions.
• Multiple lithium battery and charger options to meet diverse user requirements.
• Spacious legroom and shock-absorbing seat enhance driving comfort.
• Electric-hydraulic lift control offers more precise handling for a better operator experience.

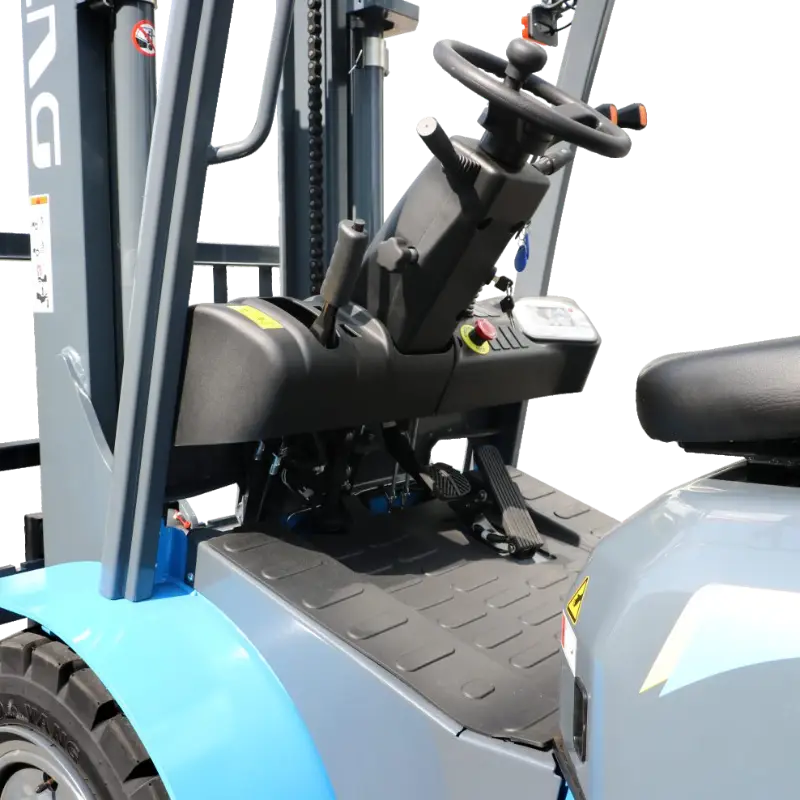

• Fully enclosed ABS instrument panel, sleek and clean design for more comfortable operation.
• Electrical system features insulation detection, over-voltage, over-current, and over-temperature protection for enhanced safety.
• Wide-vision overhead guard provides a broader field of view and safer working environment.
• Mast lowering buffer ensures safer stacking operations.
• Multifunctional display clearly shows power level, fault codes, and other vehicle information.
• Up to 90% parts compatibility for economical and convenient maintenance.

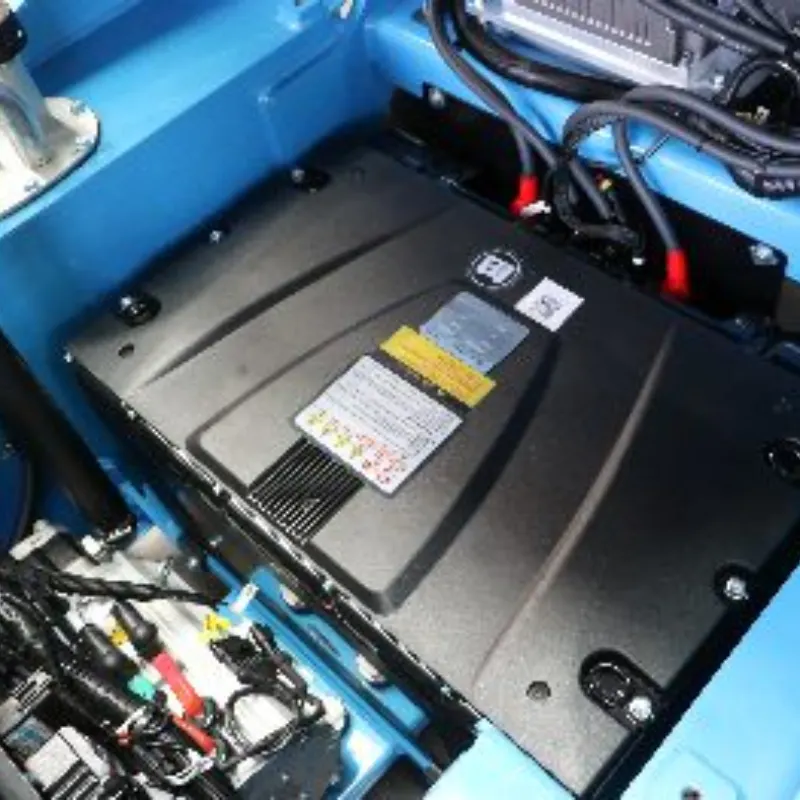

• Maintenance-free lithium battery supports opportunity charging.
|
Identification |
1.1 |
Manufacturer |
|
|
FLAG |
FLAG |
FLAG |
FLAG |
FLAG |
|
1.2 |
Model |
|
|
CPD20(PF20D) |
CPD25(PF25D) |
CPD30(PF30D) |
CPD35(PF35D) |
CPD38(PF38D) |
|
|
1.3 |
Drive |
|
|
Electric |
Electric |
Electric |
Electric |
Electric |
|
|
1.4 |
Operator type |
|
|
Seated |
Seated |
Seated |
Seated |
Seated |
|
|
1.5 |
Load capacity/rated load |
Q |
kg |
2000 |
2500 |
3000 |
3500 |
3800 |
|
|
1.6 |
Load centre |
c |
mm |
500 |
500 |
500 |
500 |
500 |
|
|
1.7 |
Load centre, distance of support arm wheel to face of fork |
x |
mm |
435 |
435 |
485 |
485 |
485 |
|
|
1.8 |
Wheelbase |
y |
mm |
1700 |
1700 |
1760 |
1760 |
1780 |
|
|
Weight |
2.1 |
Service weight including battery |
|
kg |
3300 |
3600 |
4200 |
4500 |
4760 |
|
2.2 |
Axle load, mast extended with load, drive/support arm wheel |
|
kg |
4710/590 |
5410/690 |
6300/900 |
7000/1000 |
7460/1100 |
|
|
2.3 |
Axle load, mast retracted without load, drive/support arm wheel |
|
kg |
1540/1760 |
1440/2160 |
1850/2350 |
2000/2500 |
2130/2630 |
|
|
Wheels |
3.1 |
Tyre |
|
|
Pneumatic |
Pneumatic |
Pneumatic |
Pneumatic |
Pneumatic |
|
3.2 |
Wheel size, front |
|
|
7.00/12-12PR |
7.00/12-12PR |
28x9-15-14PR |
28x9-15-14PR |
28x9-15-14PR |
|
|
3.3 |
Wheel size, rear |
|
|
6.00-9-10PR |
6.00-9-10PR |
6.50-10-10PR |
6.50-10-10PR |
6.50-10-10PR |
|
|
3.5 |
Wheels, number front/rear (x = driven wheels) |
|
|
2x/2 |
2x/2 |
2x/2 |
2x/2 |
2x/2 |
|
|
3.6 |
Track width, front |
b10 |
mm |
975 |
975 |
1000 |
1000 |
1000 |
|
|
3.7 |
Track width, rear |
b11 |
mm |
970 |
970 |
970 |
970 |
970 |
|
|
Dimensions |
4.1 |
Tilt of fork, forward/backward |
α/β |
° |
6/10 |
6/10 |
6/10 |
6/10 |
6/10 |
|
4.2 |
Height, mast lowered |
h1 |
mm |
2100 |
2100 |
2100 |
2100 |
2200 |
|
|
4.3 |
Free lift |
h2 |
mm |
150 |
150 |
150 |
150 |
150 |
|
|
4.4 |
Lift height |
h3 |
mm |
3000 |
3000 |
3000 |
3000 |
3000 |
|
|
4.5 |
Height, mast extended |
h4 |
mm |
4050 |
4050 |
4200 |
4200 |
4225 |
|
|
4.7 |
Height of overhead guard (cabin) |
h6 |
mm |
2100 |
2100 |
2100 |
2100 |
2100 |
|
|
4.8 |
Seat height |
h7 |
mm |
1165 |
1165 |
1165 |
1165 |
1165 |
|
|
4.12 |
Height support arms |
|
mm |
455 |
455 |
455 |
455 |
455 |
|
|
4.19 |
Overall length |
l1 |
mm |
2410 |
3630 |
3810 |
3810 |
3830 |
|
|
4.20 |
Length to face of forks |
b |
mm |
2560 |
2560 |
2740 |
2740 |
2760 |
|
|
4.21 |
Overall width |
b1 |
mm |
1170 |
1170 |
1230 |
1230 |
1310 |
|
|
4.22 |
Fork dimensions |
s/e/l |
mm |
40/122/920 |
40/122/1070 |
50/125/1070 |
50/125/1070 |
50/122/1070 |
|
|
4.23 |
Fork carriage ISO 2328, class/type A, B |
|
|
2A |
2A |
3A |
3A |
3A |
|
|
4.24 |
Fork carriage width |
b3 |
mm |
1040 |
1040 |
1100 |
1100 |
1100 |
|
|
4.31 |
Ground clearance, with load, below mast |
m1 |
mm |
95 |
95 |
115 |
115 |
125 |
|
|
4.32 |
Ground clearance, center of wheelbase |
m2 |
mm |
130 |
130 |
150 |
150 |
160 |
|
|
4.34.1 |
Aisle width for pallets 1000x1200 crossways |
Ast |
mm |
4070 |
4070 |
4200 |
4200 |
4230 |
|
|
4.34.2 |
Aisle width for pallets 800x1200 lengthways |
Ast |
mm |
4270 |
4270 |
4400 |
4400 |
4430 |
|
|
4.35 |
Turning radius |
Wa |
mm |
2360 |
2360 |
2490 |
2490 |
2520 |
|
|
Performance data |
5.1 |
Travel speed, without /with load |
|
km/h |
14/15 |
14/15 |
13/15 |
13/15 |
12/14 |
|
5.2 |
Lift speed, without /with load |
|
m/s |
0.4/0.45 |
0.4/0.45 |
0.38/0.45 |
0.35/0.42 |
0.32/0.40 |
|
|
5.3 |
Lowering speed, without /with load |
|
m/s |
0.4/0.45 |
0.4/0.45 |
0.4/0.45 |
0.4/0.45 |
0.4/0.45 |
|
|
5.7 |
Max. gradeability, without /with load |
|
% |
15/17 |
15/17 |
15/17 |
15/17 |
15/17 |
|
|
5.9 |
Acceleration time without /with load |
|
s |
6.1/5.6 |
6.3/5.8 |
6.5/6 |
6.8/6.2 |
7.1/6.5 |
|
|
5.10 |
Service brake |
|
|
Mechanical/Electric |
Mechanical/Electric |
Mechanical/Electric |
Mechanical/Electric |
Mechanical/Electric |
|
|
Electric motor |
6.1 |
Drive motor rating S2 60 min |
|
kW |
15 |
15 |
15 |
15 |
15 |
|
6.2 |
Lifting motor rating S3 15% |
|
kW |
22.6 |
22.6 |
22.6 |
22.6 |
22.6 |
|
|
6.3 |
Battery type (DIN 43531/35/36, A/B/C/no) |
|
|
no |
no |
no |
no |
no |
|
|
6.4 |
Battery voltage, nominal capacity K |
|
V/Ah |
76.8/230 |
76.8/230 |
76.8/230 |
76.8/230 |
76.8/230 |
|
|
6.5 |
Battery weight |
|
kg |
≥110kg±5% |
≥110kg±5% |
≥140kg±5% |
≥110kg±5% |
≥140kg±5% |
|
|
Other |
10.1 |
Operating pressure for attachments |
|
bar |
160 |
160 |
180 |
180 |
180 |
|
10.2 |
Oil volume for attachments |
|
l/min |
35 |
35 |
38 |
38 |
38 |
|
|
10.7 |
Sound level at the driver's ear according to EN 12053 |
|
dB(A) |
≤75 |
≤75 |
≤75 |
≤75 |
≤75 |
CPD(PF‑D) standard battery is 76.8V‑230Ah. Larger‑capacity lithium batteries are optional to meet multi‑shift operation requirements. Vehicle dashboard displays real‑time battery level and fault codes.
Standard mast lifting height is 3000 mm. Duplex and triplex masts are available, custom lifting heights cover 4000‑6000 mm. When using high‑lift triplex mast, please refer to load curve to confirm actual residual load capacity.
The electrical system reaches IPX4 dust‑proof and water‑proof grade. It is equipped with insulation detection, over‑voltage and over‑current protection to reduce breakdowns in harsh workshop environments.
