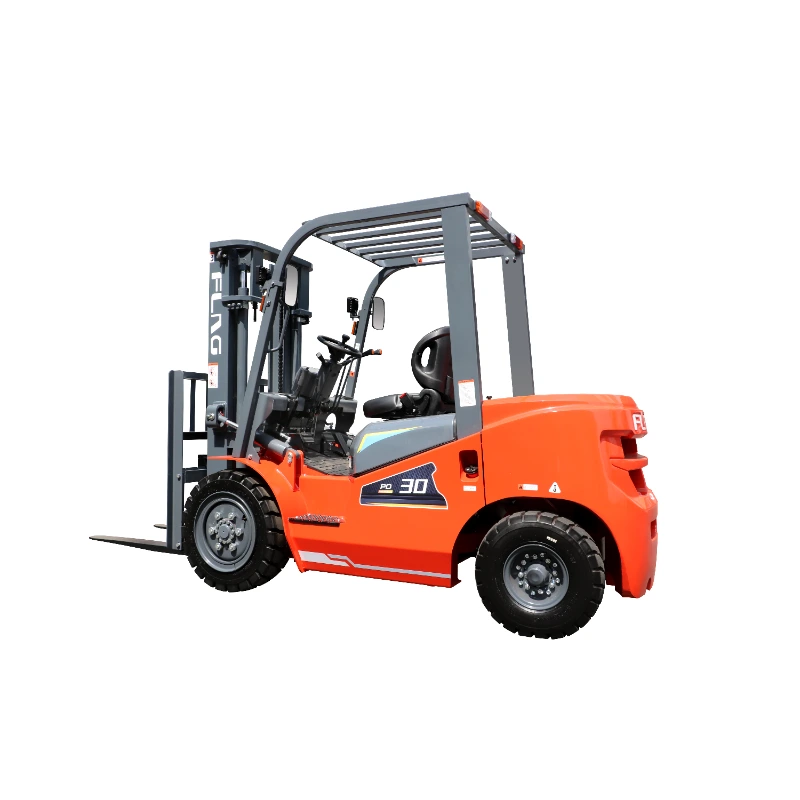

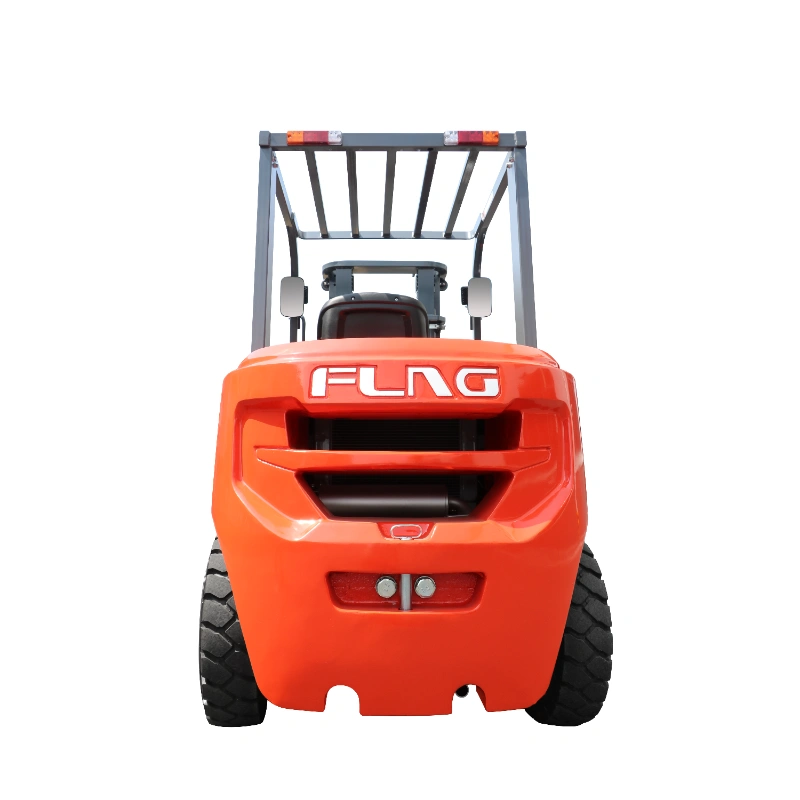

FLAG 2-3.8 ton CPCD(PD‑A) series diesel forklift
• Powerful forklift with Isuzu/Mitsubishi/Xinchai/Quanchai engines & Japanese‑grade transmission.
• Safe design: stamped overhead guard, waterproof connectors, OPS anti‑accidental startup.
• Ergonomic setup: wide‑view mast, anti‑vibration suspended seat, ample foot space, adjustable steering column with small wheel and easy‑operate ratchet handbrake.
• Detachable side panels and large‑opening hood ensure simple maintenance.
• Scientific design and manufactured truck body combines superior power train makes the forklift outstanding in performance and operation. The power train includes the well‑known engines like Isuzu, Mitsubishi, Xinchai, Quanchai and Japanese level technology transmission.
• Utilizing the new narrow‑groove steel mast to reduce the overall vehicle weight & enhance visibility.
• Equipped with an interactive dashboard as standard for real‑time monitoring.
• New generation LED lighting system.
• The stamped overhead guard offers increased durability and reliability.
• All key connectors and joints are waterproof.
• The OPS system effectively prevents unintended forklift startup.
• Wide‑view mast provides a broader vision.
• Implementing a suspended seat has reduced vibrations.
• The spacious foot space provides easy access for getting on and off.
• The adjustable steering column equip with a small steering wheel for more effortless operation.
• Adopting a new type of ratchet handbrake, effectively reducing operating force.
• The detachable side panels make maintenance and cleaning more convenient.

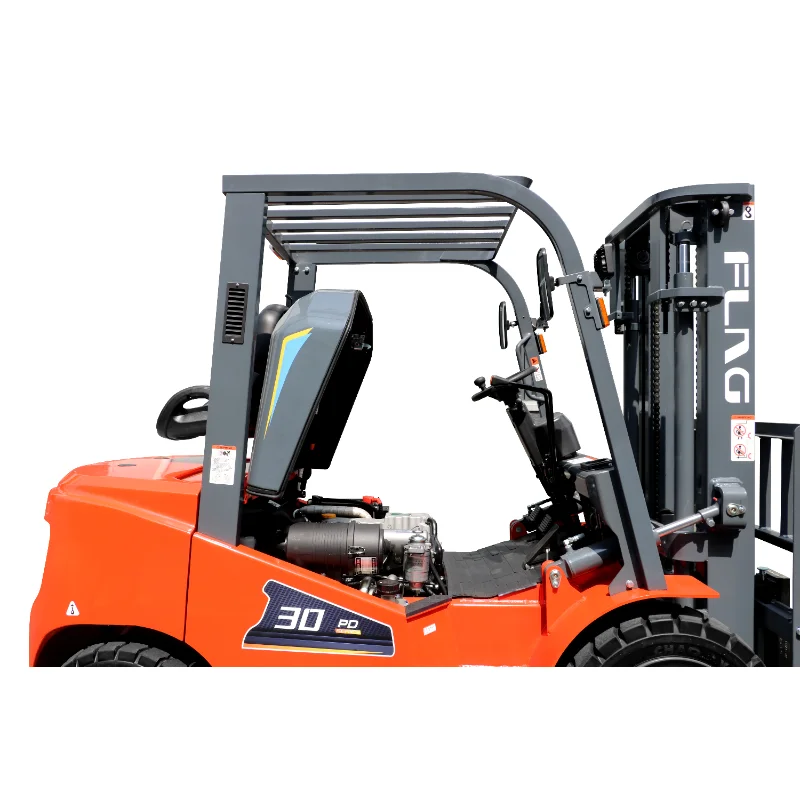

• The large opening angle of the engine hood makes maintenance easier.
| Identification | 1.1 | Manufacturer | FLAG | FLAG | ||
| 1.2 | Model | CPCD30(PD30A) | CPCD35(PD35A) | |||
| 1.3 | Drive | diesel | diesel | |||
| 1.4 | Operator type | seated | seated | |||
| 1.5 | Load capacity /rated load | Q | kg | 3000 | 3500 | |
| 1.6 | Load centre | c | mm | 500 | 500 | |
| 1.7 | Load distance, centre of support arm wheel to face of fork | x | mm | 485 | 485 | |
| 1.8 | Wheelbase | y | mm | 1760 | 1760 | |
| Weight |
2.1 | Service weight including battery | kg | 4200 | 4450 | |
| 2.2 | Axle load, mast extended with load, drive/support arm wheel | kg | 6300/900 | 7000/950 | ||
| 2.3 | Axle load, mast retracted without load, drive/support arm wheel | kg | 1850/2350 | 2000/2450 | ||
| Wheels |
3.1 | Type | Pneumatic | Pneumatic | ||
| 3.2 | Wheel size, front | 28x9-15-14PR | 28x9-15-14PR | |||
| 3.3 | Wheel size, rear | 6.50-10-10PR | 6.50-10-10PR | |||
| 3.4 | Wheels, number front/rear (x= driven wheels) | 2x/2 | 2x/2 | |||
| 3.5 | Track width, front | b 10 | mm | 1000 | 1000 | |
| 3.6 | Track width, rear | b 11 | mm | 960 | 960 | |
| 4.1 | Tilt of fork, forward/backward | α/β | ° | 6/10 | 6/12 | |
| 4.2 | Height, mast lowered | h 1 | mm | 2100 | 2115 | |
| 4.3 | Free lift | h 2 | mm | 150 | 150 | |
| 4.4 | Lift height | h 3 | mm | 3000 | 3000 | |
| 4.5 | Height, mast extended | h 4 | mm | 4160 | 4160 | |
| 4.6 | Height of overhead guard (cabin) | h 6 | mm | 2100 | 2100 | |
| 4.7 | Seat height | h 7 | mm | 1165 | 1165 | |
| Dimensions |
4.19 | Overall length | l 1 | mm | 3820 | 3870 |
| 4.20 | Length to face of forks | l 2 | mm | 2750 | 2800 | |
| 4.21 | Overall width | b 1 | mm | 1230 | 1230 | |
| 4.22 | Fork dimensions | s/e/l | mm | 45/125/1070 | 50/125/1070 | |
| 4.23 | Fork carriage ISO 2328, class/type A, B | 3A | 3A | |||
| 4.24 | Fork carriage width | b 3 | mm | 1100 | 1100 | |
| 4.31 | Ground clearance, with load, below mast | m 1 | mm | 90 | 90 | |
| 4.32 | Ground clearance, center of wheelbase | m 2 | mm | 160 | 160 | |
| 4.34.1 | Aisle width for pallets 1000x1200 crossways | A st | mm | 4360 | 4400 | |
| 4.34.2 | Aisle width for pallets 800x1200 lengthways | A st | mm | 4160 | 4200 | |
| 4.35 | Turning radius | W a | mm | 2480 | 2520 | |
| Performance data |
5.1 | Travel speed, with/without load | km/h | 17/19 | 17/19 | |
| 5.2 | Lift speed, with/without load | m/s | 0.4/0.45 | 0.4/0.45 | ||
| 5.3 | Lowering speed, with/without load | m/s | 0.43/0.46 | 0.43/0.46 | ||
| 5.4 | Max. gradability, with/without load | % | 20/20 | 20/20 | ||
| 5.6 | Service brake | Mechanical/hydraulic | Mechanical/hydraulic | |||
| Motor |
7.1 | Engine Model | V29-50V42 | V29-50V42 | ||
| 7.2 | Engine Power in compliance | kW | 36.8 | 36.8 | ||
| 7.3 | Rated number of Revolutions | r/min | 2500 | 2500 | ||
| 7.4 | Cylinder Number/Displacement | /L | 4/2.85 | 4/2.85 | ||
| 7.5 | On-board voltage, nominal capacity | V/Ah | 12/80 | 12/80 | ||
| Other |
8.1 | Drive Control Type | Mechanical/hydraulic | Mechanical/hydraulic | ||
| 9.1 | Service Pressure for Attachments | bar | 180 | 180 | ||
| 10.1 | Volume fuel tank | L | 60 | 60 |
Yes. Our 3‑stage masts are available in regular customer options: 4m, 4.5m, 4.8m, 5m, 5.5m and 6m lifting heights.
Our fastest production lead time is 2 weeks for standard configurations. Lead‑time for custom items such as special masts will be subject to specific specifications. Please contact our sales team to confirm the exact delivery schedule for your order.
Yes, both electronic‑hydraulic and manual‑mechanical versions are available. You may select based on your actual operation requirements.
