FLAG 2.0-3.0 ton CBD-S series electric pallet truck
• Features 2000 KGS / 2500 KGS / 3000 KGS capacity, suitable for heavy and long distance operations.
• Equipped with foldable platforms and floating drive wheels.
• Designed for long-distance heavy load handling, ideal for logistics companies.
• Simple structure enables easy inspection and service.
• Capacity: 2000 KGS / 2500 KGS / 3000 KGS, suitable for heavy and long distance operations.
• Equipped with foldable platforms and floating drive wheels.
• Designed for long-distance heavy load handling, ideal for logistics companies.
• Simple structure for easy inspection and service.
| Distinguishing mark | 1.1 | Model | CBD20(EP20) | CBD25(EP25) | CBD30(EP30) | |
| 1.3 | Power(battery,diesel,petrol,gas,manual) | Battery | Battery | Battery | ||
| 1.4 | Operator type | Pedestrian | Pedestrian | Pedestrian | ||
| 1.5 | Load capacity / Rated load | Q(t) | 2 | 2.5 | 3 | |
| 1.6 | Load centre distance | C(mm) | 600 | 600 | 600 | |
| 1.8 | Load distance,centre of drive axle to fork | X(mm) | 960 | 960 | 960 | |
| 1.9 | Wheelbase | Y(mm) | 1500 | 1500 | 1500 | |
| Weight | 2.1 | Service weight | kg | 625 | 625 | 625 |
| 2.2 | Axle loading, laden front/rear | kg | 1095/1633 | 1095/1633 | 1095/1633 | |
| 2.3 | Axle loading, unladen front/rear | kg | 497/124 | 497/124 | 497/124 | |
| Tires, chassis | 3.1 | Tires | PU | PU | PU | |
| 3.2 | Tire size, front | Φ*w(mm) | Φ250×80 | Φ250×80 | Φ250×80 | |
| 3.3 | Tire size, rear | Φ*w(mm) | Φ80×70 | Φ80×70 | Φ80×70 | |
| 3.4 | Additional wheels(dimensions) | Φ*w(mm) | Φ115×55 | Φ115×55 | Φ115×55 | |
| 3.5 | Wheels, number front/rear(x=driven wheels) | 1x+2/4 | 1x+2/4 | 1x+2/4 | ||
| 3.6 | Tread, front | b10(mm) | 625 | 625 | 625 | |
| 3.7 | Tread, rear | b11(mm) | 385/510 | 385/510 | 385/510 | |
| Dimensions | 4.4 | Lift height | h3(mm) | 120 | 120 | 120 |
| 4.9 | Height of tiller in drive position min./max. | h14(mm) | 1030/1430 | 1030/1430 | 1030/1430 | |
| 4.15 | Height, lowered | h13(mm) | 85 | 85 | 85 | |
| 4.19 | Overall length | l1(mm) | 1930 | 1930 | 1930 | |
| 4.20 | Length to face of forks | l2(mm) | 780 | 780 | 780 | |
| 4.21 | Overall width | b1(mm) | 820 | 820 | 820 | |
| 4.22 | Fork dimensions | s/e/l(mm) | 50/176/1150 | 50/176/1150 | 50/176/1150 | |
| 4.25 | Distance between fork-arms | b5(mm) | 560/685 | 560/685 | 560/685 | |
| 4.32 | Ground clearance, centre of wheelbase | m2(mm) | 30 | 30 | 30 | |
| 4.33 | Aisle width for pallets 1000×1200 crossways | Ast(mm) | 2550 | 2550 | 2550 | |
| 4.34 | Fork dimensions | Ast(mm) | 2415 | 2415 | 2415 | |
| 4.35 | Turning radius | Wa(mm) | 1750 | 1750 | 1750 | |
| Performance | 5.1 | Travel speed, laden/unladen | km/h | 5.5/5.8 | 5.5/5.8 | 5.5/5.8 |
| 5.2 | Lift speed, laden/unladen | m/s | 0.04/0.05 | 0.04/0.05 | 0.04/0.05 | |
| 5.3 | Lowering speed, laden/unladen | m/s | 0.06/0.05 | 0.06/0.05 | 0.06/0.05 | |
| 5.8 | Gradability, laden/unladen | % | 8/20 | 8/20 | 8/20 | |
| 5.10 | Service brake | Electromagnetic | Electromagnetic | Electromagnetic | ||
| Motors | 6.1 | Drive motor rating S2 60min | kw | 1.5 | 1.5 | 2.2 |
| 6.2 | Lift motor rating at S3 10% | kw | 2.2 | 2.2 | 2.2 | |
| 6.3 | Battery acc. to DIN 43531/35/36 A, B, C, no | \ | \ | \ | ||
| 6.4 | Battery voltage, nominal capacity K5 | V/Ah | 24/210(270) | 24/210(270) | 24/210(270) | |
| Additional data | 6.5 | Battery weight (minimum) | kg | 200/260 | 200/260 | 200/260 |
| 6.6 | Energy consumption acc. to VDI cycle | KWh/h | \ | \ | \ | |
| 8.1 | Type of drive control | AC | AC | AC | ||
| 8.4 | Sound level at driver's ear acc. to EN 12053 | dB(A) | ≤70 | ≤70 | ≤70 |

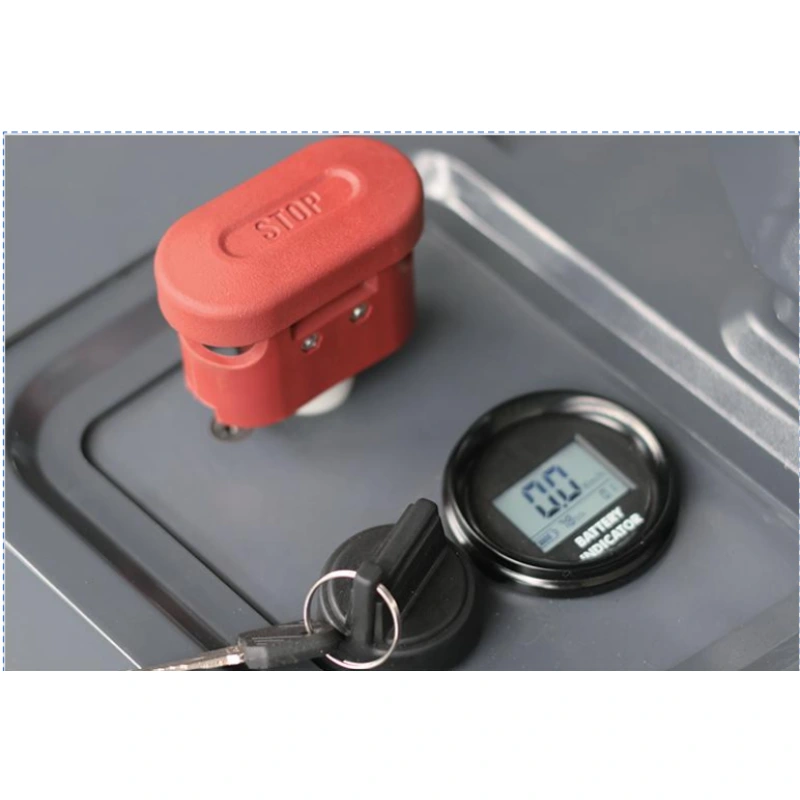

Standard battery options are 24V‑210Ah / 24V‑270Ah. Higher‑capacity battery can be selected for full‑shift continuous handling. Battery status can be checked on the truck display.
Standard fork dimension is 50/176/1150mm. Custom fork length and width are supported for non‑standard pallets. Please provide your pallet specifications for pre‑order confirmation.
It is equipped with reliable electromagnetic braking system. The working noise level is ≤70dB(A) according to EN12053 standard, which is suitable for long‑time operation in indoor warehouse environment.
