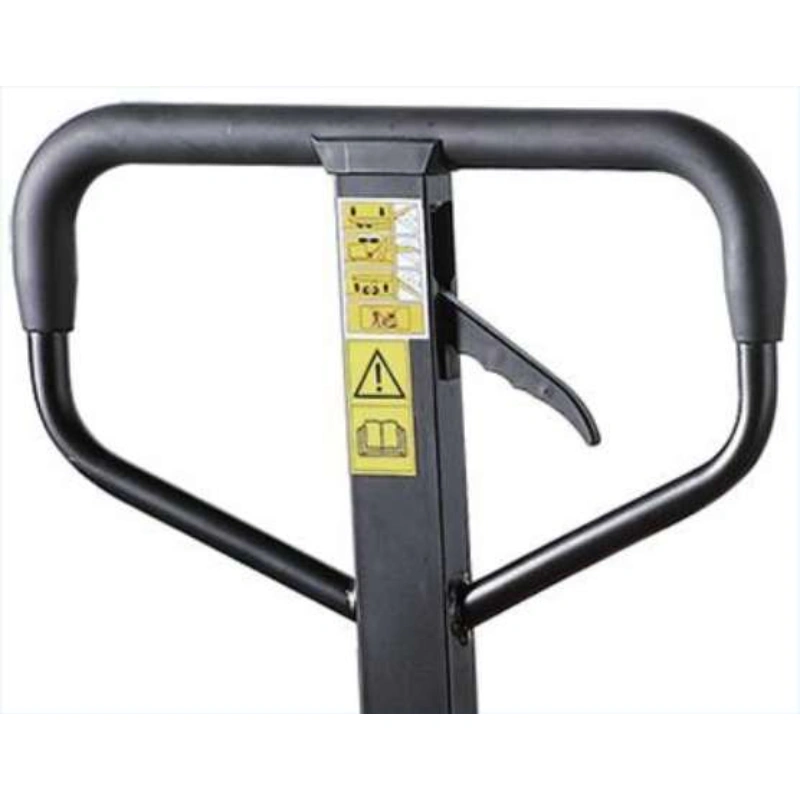

1.53.0t-Hand-Pallet-Truck-CBD-Series-Handle-For-Material-Handling Manufacturer

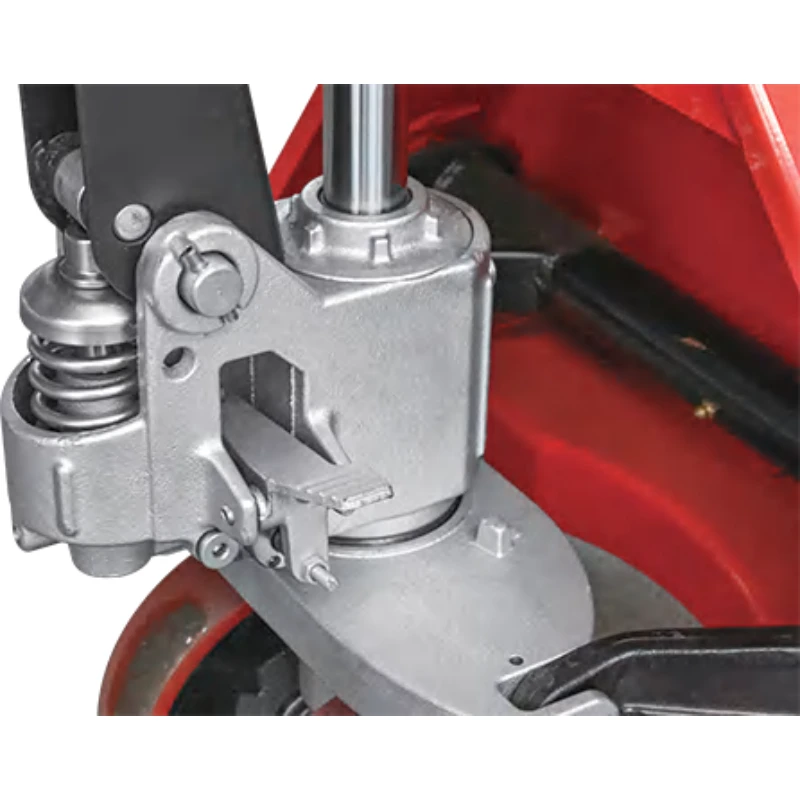

1.53.0t-Hand-Pallet-Truck-CBD-Series-Jack-Pump-For-Material-Handling Manufacturer

1.5/3.0t Hand Pallet Truck CBD15/CBD30

FLAG 1.5/3.0t CBD-J series hand pallet truck

• Features 2500 KGS / 3000 KGS capacity, ideal for short-distance manual transport in stores, warehouses and factory plants.

• Excellent designs, reliable, sturdy and torsion-resistant.

• Offers Polyurethane, Nylon and Rubber wheel options to satisfy diverse operational needs.

• Equipped with stronger steel spring and sealed oil cylinder for stable operation.

Inquire Now

Download

Description
Technical Specification
FAQS

Reliability & Performance

• Capacity: 2500 KGS / 3000 KGS, ideal storage aid for short-distance manual transport in stores, warehouses and factory plants.
• Excellent designs, reliable, sturdy and torsion-resistant.
• Equipped with stronger steel spring and sealed oil cylinder.
• Multiple wheel options: Polyurethane, Nylon, Rubber.

Safety & Ergonomics

• Sturdy torsion-resistant structure ensures safe goods handling.

Easy Maintenance

• Replaceable wheels for convenient part replacement.
• Sealed oil cylinder for stable hydraulic performance.

Technical Specification

Model		CBD25(BF25)	CBD30(BF30)
Pump		BF casting pump
Capacity	kg	2500	3000
Height of fork	mm	75-190/85-200
Fork width	mm	550/685
Fork length	mm	800/900/1000/1100/1150/1220
Steering wheel size	mm	180
Front wheel size (twin wheels)	mm	Φ 80×70 / Φ 74×70
Front wheel dimensions (single wheel)	mm	Φ 80×93 / Φ 74×93
Material of the wheel		Nylon / PU
Pump time to the top	times	≤13
Packing	pcs/pallet	6
Net weight	kg	68-75

FAQS

What fork length options are available for CBD(BF) hand pallet truck? Can we customize fork size for special pallets?

Standard fork lengths include 800mm,900mm,1000mm,1100mm,1150mm,1220mm. Custom fork dimensions are available for non‑standard pallets. Please provide your pallet size for technical check.
What wheel material choices do we have for CBD(BF) series hand pallet truck? Which one suits for concrete or cold‑storage warehouse?

Nylon and PU wheels are optional. Nylon wheels are durable for rough concrete ground; PU wheels run quieter and are more suitable for smooth floor and cold‑storage working environment.
How many pumping strokes are required to fully lift the forks? What is the service life of the casting pump?

Max 13 pumping strokes to reach full fork lifting height. Adopted BF cast‑integrated hydraulic pump, it features stable lifting performance and good leak‑proof performance for daily heavy‑duty warehouse handling.
