FLAG 1.4/1.6/1.8 ton QS series electric reach truck
• Features E-brake energy regeneration and 360° unlimited steering for flexible operation.
• FLAG control system supports customisation of driving parameters.
• Equipped with adjustable footrest, protective overhead guard and ergonomic cabin with colour touchscreen.
• Built-in fault diagnosis and quick hydraulic couplings simplify servicing.
• Premium lithium battery and brushless AC motors lower maintenance requirements.
• E-brake: The Energy Regeneration Function extends working hours.
• 360° steering: Change driving direction thanks to the continuous movement of the steering wheel. Unlimited rotation enables smooth and fast manoeuvring.
• The FLAG control system allows you to set parameters including acceleration, maximum speed, steering sensitivity and braking.
• The multi-function dashboard has a steering wheel indicator for easy operation. Electronic combination locks are standard, and different drivers can be distinguished by different codes.

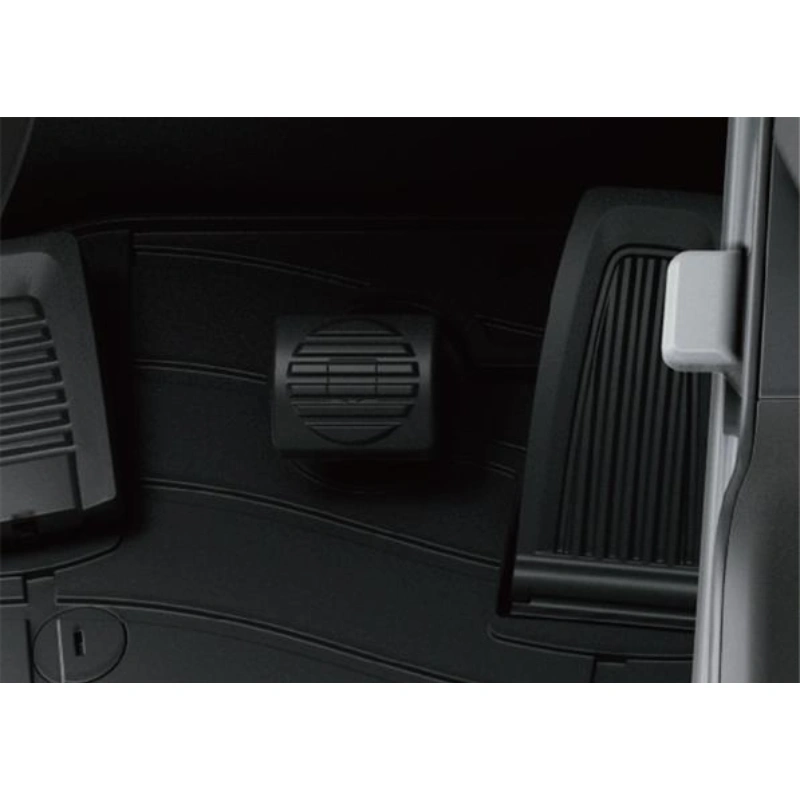

• Height-adjustable cab pedals.
• The driver's footrest is adjustable in three heights (from the seat to the floor) from 450-495-540 mm to suit drivers of different sizes.

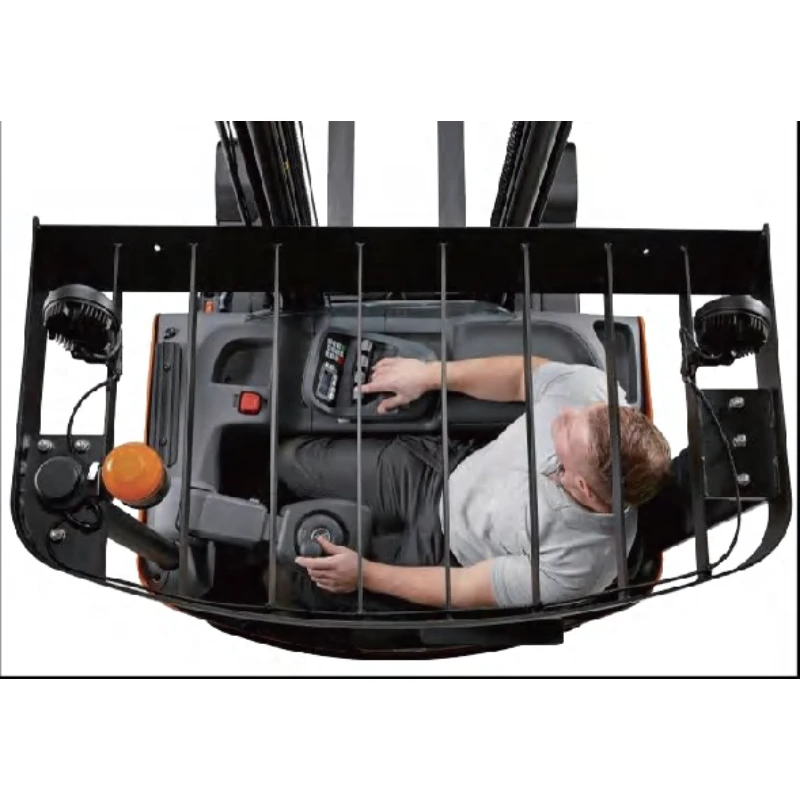

• New overhead guard racks.
• The driver's entire body is well protected within the confines of the frame, helping to reduce the risk of injury to the driver. In addition, the new overhead guards provide the driver with a clear view of the road, improving efficiency and safety. Designed around the operator.

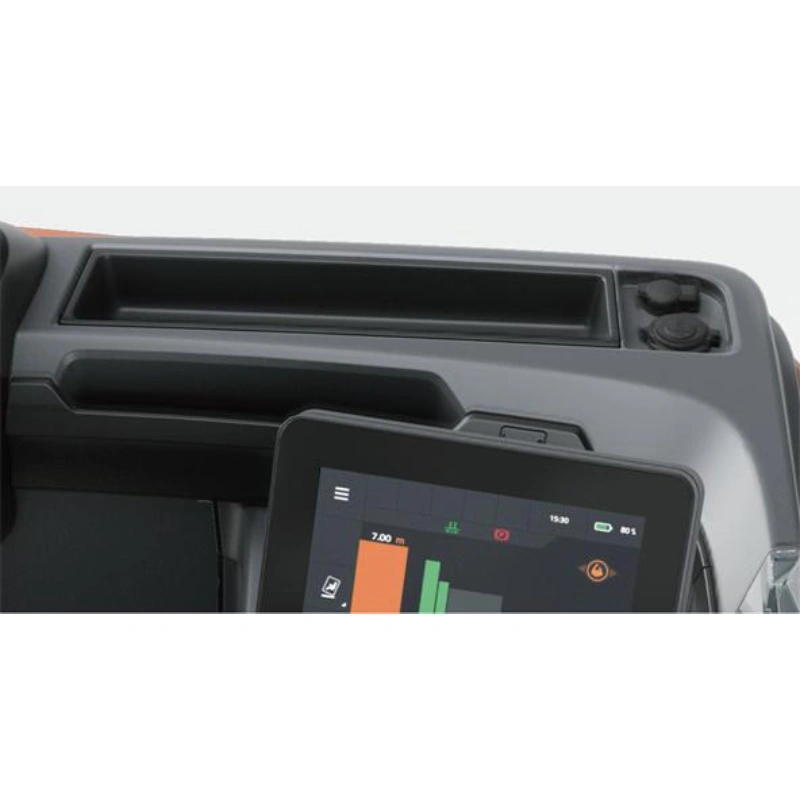

• The driver compartment is ergonomically designed around the operator, offering intuitive and interactive features such as an easy-to-read colour touchscreen display.
• QS series are equipped with fault code and history error record display for quicker diagnosis. QS series adopts quick hydraulic joints, no extra tools are needed for disassembly.
• The international first-class brand lithium battery reduces maintenance time, and the lifting and driving motors are AC motors with no carbon brushes to replace.
|
Identification |
1.1 | Manufacturer | FLAG | FLAG | FLAG | |
| 1.2 | Model | QS14 | QS16 | QS18 | ||
| 1.3 | Drive | Electric | Electric | Electric | ||
| 1.4 | Operator type | Seated | Seated | Seated | ||
| 1.5 | Load capacity/rated load | Q(kg) | 1400 | 1600 | 1800 | |
| 1.6 | Load centre | c(mm) | 600 | 600 | 600 | |
| 1.8 | Load distance, centre of support arm wheel to face of fork | x(mm） | 310* | 394* | 373* | |
| 1.9 | Wheelbase | y(mm） | 1311 | 1395 | 1455 | |
|
Weight |
2.1 | Service weight including battery | kg | 3390 | 3398 | 3908 |
| 2.3 | Axle load, mast retracted without load, drive / support arm wheel | kg | 2067/1323 | 2123/1274 | 2357/1551 | |
| 2.4 | Axle load, mast extended with load, drive / support arm wheel | kg | 667/4123 | 607/4390 | 717/4991 | |
| 2.5 | Axle load, mast retracted with load, drive/support arm wheel | kg | 1758/3032 | 1887/3110 | 2054/3655 | |
|
Wheels |
3.1 | Drive/support arm wheel | Polyurethane | Polyurethane | Polyurethane | |
| 3.2 | Wheel size, Drive | mm | Ø343×140 | Ø343×140 | Ø360×160 | |
| 3.3 | Wheel size, Support | mm | Ø300×106 | Ø300×106 | Ø350×106 | |
| 3.5 | Wheels, number Drive/Support (x = driven wheels) | 1x/2 | 1x/2 | 1x/2 | ||
| 3.7 | Track width, Support | b11(mm) | 1134 | 1134 | 1134 | |
|
Dimensions |
4.1 | Tilt of fork, forward/backward | α /β(deg) | -2°/4° * | -2°/4° * | -2°/4° * |
| 4.2 | Height,mast lowered | h1（mm） | 2887* | 2887* | 2966* | |
| 4.3 | Free lift | h2（mm） | 2403* | 2403* | 2459* | |
| 4.4 | Lift | h3（mm） | 6945* | 6945* | 6945* | |
| Lift height | h23（mm） | 7000* | 7000* | 7000* | ||
| 4.5 | Height, mast extended | h4（mm） | 7540* | 7540* | 7548* | |
| 4.7 | Height of overhead guard (cabin) | h6(mm) | 2198 | 2198 | 2261 | |
| 4.8 | Seat height | h7(mm) | 1136 | 1136 | 1198 | |
| 4.10 | Height support arms | h8(mm) | 268 | 268 | 268 | |
| 4.15 | Height,fork lowerwd | h13(mm) | 55 | 55 | 55 | |
| 4.19 | Overall length | l1(mm) | 2413 | 2413 | 2494 | |
| 4.20 | Length to face of forks | l2(mm) | 1263 | 1263 | 1344 | |
| 4.21 | Overall width | b1(mm) | 1270 | 1270 | 1270 | |
| 4.22 | Fork dimensions | s/e/l(mm) | 40/100/1150* | 40/100/1150* | 40/120/1150* | |
| 4.23 | Fork carriage ISO 2328,class/type A,B | 2A | 2A | 2A | ||
| 4.24 | Fork carriage width | b3(mm) | 819 | 819 | 819 | |
| 4.25 | Width over forks | b5(mm) | 252 – 698 | 252 – 698 | 272 – 718 | |
| 4.26 | Distance between wheel arms/loading surfaces | b4(mm) | 900* | 900* | 900* | |
| 4.28 | Reach distance | l4(mm) | 506* | 590* | 594* | |
| 4.30 | Ground clearance, with load, below mast | m1(mm) | 68 | 68 | 68 | |
| 4.31 | Ground clearance, centre of wheelbase | m2(mm) | 74 | 74 | 74 | |
| Travel |
4.34.1 | Aisle width for pallets 1000×1200 crossways | Ast (mm) | 2687 | 2710 | 2785 |
| 4.34.2 | Aisle width for pallets 800×1200 lengthways | Ast( mm) | 2749 | 2757 | 2836 | |
| 4.35 | Turning radius | Wa(mm) | 1573 | 1657 | 1717 | |
| 4.37 | Length across support arms | l7(mm) | 1744 | 1828 | 1913 | |
|
Performance |
5.1 | Travel speed, with / without load | km/h | 10,3/11 1) | 10/11 1) | 11/11 |
| 5.2 | Lift speed, with/without load | m/s | 0,38/0,68 | 0,36/0,68 | ___ | |
| 5.3 | Lowering speed, with/without load | m/s | 0.53/0.60 | 0.53/0.60 | 0.53/0.60 | |
| 5.4 | Reach speed,with/without load | m/s | 0.20/0,28 | 0.20/0,28 | 0.20/0,28 | |
| 5.8 | Max. gradeability, with/without load 2) | % | 10/15 | 10/15 | 10/15 | |
| 5.8 | Acceleration time with/without load (over 10m) | s | 5,0/4,6 | 5,1/4,7 | 4,7/4,5 | |
|
Electric motor rating |
6.1 | Drive motor rating S2 60 min | kW | 90 | 90 | 105 |
| 6.2 | Lift motor rating S3 15 % | kW | 110 | 110 | __ | |
| 6.4 | Battery voltage, nominal capacity K5 | V/Ah | 48/465* | 48/465* | 48/620* | |
| 6.5 | Battery weight | kg | 685* | 685* | 875* | |
| 6.6 | Energy consumption according to VDI cycle | kWh/h | 3,4 | 3,7 | 3,9 | |
| Energy consumption according to EN 16796 | kWh/h | 2,75 | 2,83 | 3,32 | ||
| 6.7 | Turnover output | t/h | 595 | 647 | 756 | |
|
|
6.8 | Energy consumption at turnover output | kWh/h | 309 | 319 | 366 |
| Other | 8.1 | Type of drive control | Variable AC | Variable AC | Variable AC | |
| 8.4 | Sound level at the driver's ear according to EN 12053 | dB(A) | 64 | 64 | 65 |
We offer multiple lithium‑ion battery capacity options for QS reach truck. Larger‑capacity battery packs can be configured for 2‑shift or 3‑shift continuous warehouse work. Battery status is displayed on the on‑board display screen.
The QS reach truck supports triplex mast for high‑rack warehouse application, max lifting height can reach up to 7000mm. The residual load capacity will drop as lifting height increases. Please refer to official load curve for actual working load data.
QS reach truck stores fault code & error history for quick troubleshooting. It adopts quick‑disconnect hydraulic joints, which helps your service team complete component replacement and daily repair without extra special tools.
