FLAG 1.2-2.0 ton CDD-S series rider electric pallet stacker
• Features 1500 KGS load capacity and 1600–4000mm lift height, great for warehouse stacking tasks.
• Built with robust one-piece solid forks and multiple handy control functions.
• Powered by lead-acid battery, with Li-ion battery available as an option.
• Fitted with emergency stop button and safety guardrail to secure operators.
• Capacity: 1500 KGS, lift height range 1600mm - 4000mm, powered by lead-acid battery (Li-ion battery optional). Suitable for warehouse short-distance stacking operation.

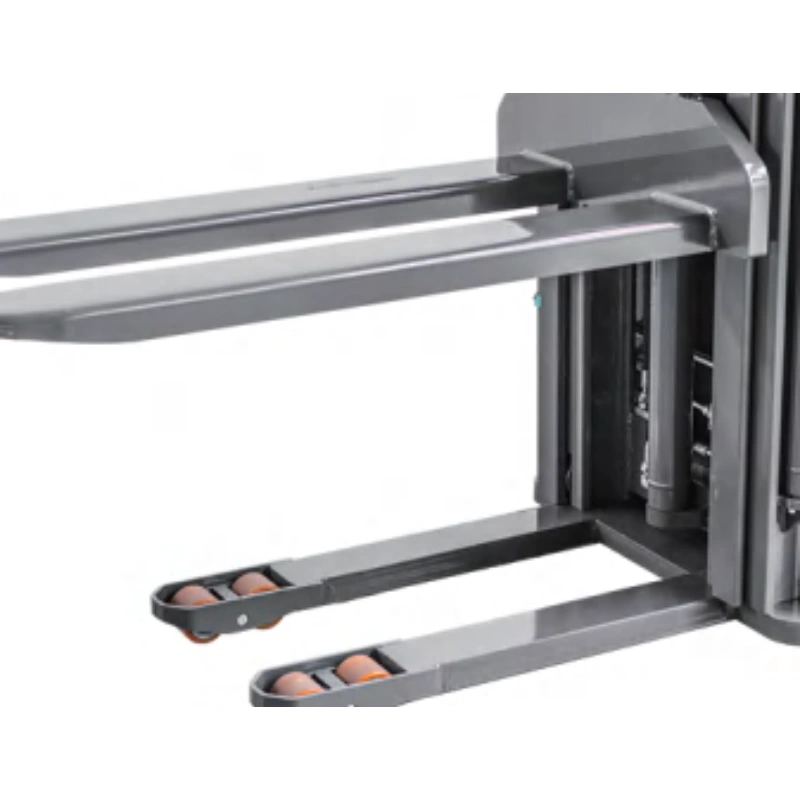

• Solid metal fork with one-piece punching forming, reinforced fork root steel plate, improves fork rigidity and load capacity.
• Multiple operation functions: emergency reverse, horn, lifting & lowering, drive control, turtle speed.
• Emergency button within easy reach to guarantee operator and vehicle safety.

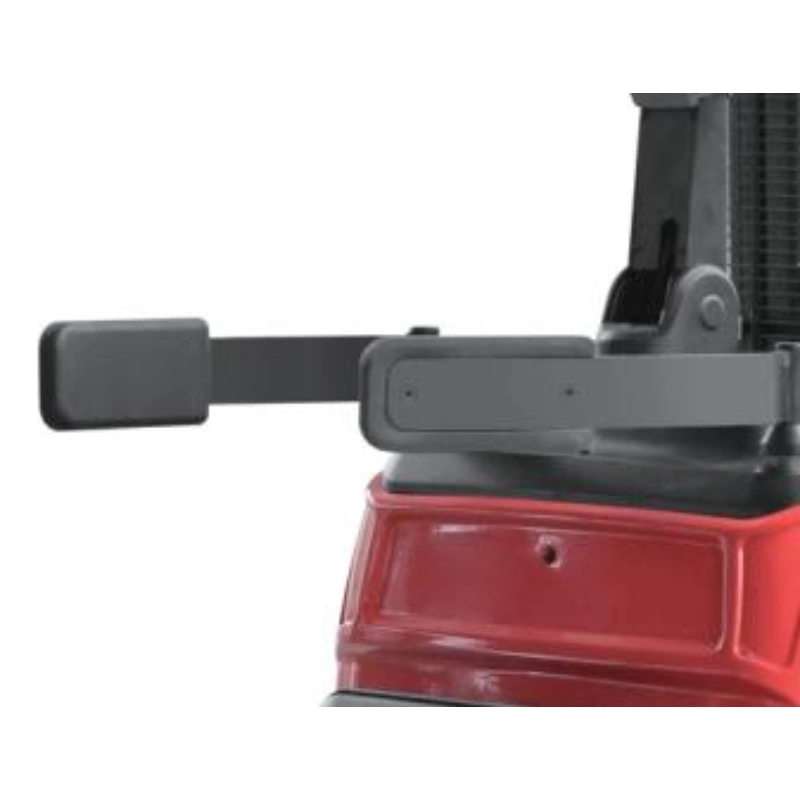

• Safety guardrail to increase security and protect users.

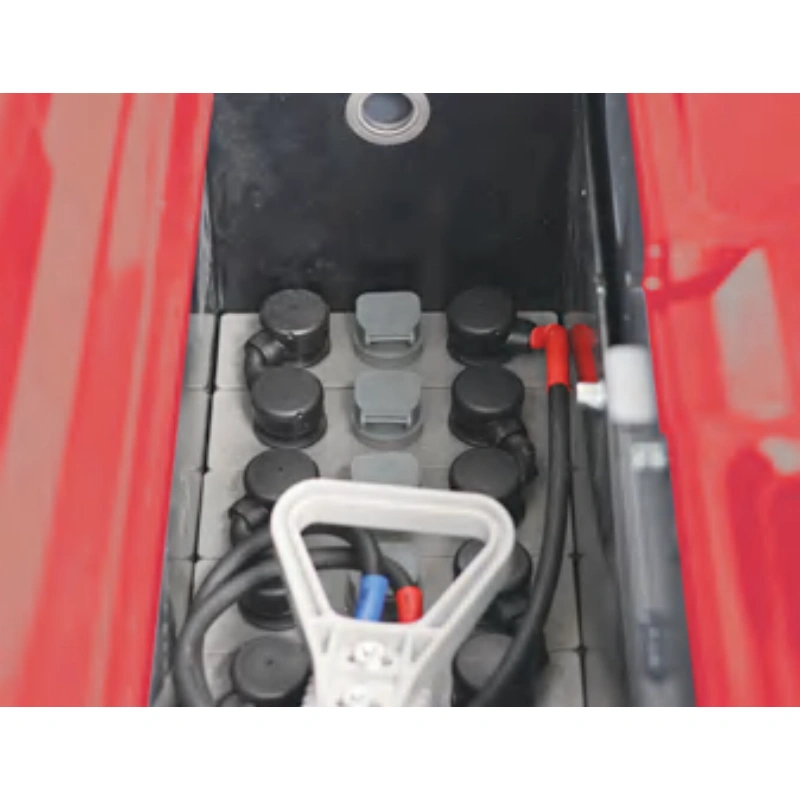

• Lead-acid battery with short charging time and long service life; lithium battery optional.
| Distinguishing mark | 1.1 | Model | CDD15(ES15E) | |
| 1.3 | Power (battery, diesel, petrol, gas, manual) | Battery | ||
| 1.4 | Operator type | Rider-control | ||
| 1.5 | Load capacity / Rated load | Q（t） | 1.5 | |
| 1.6 | Load centre distance | C（mm） | 500 | |
| 1.8 | Load distance, centre of drive axle to fork | X（mm） | 685 | |
| 1.9 | Wheelbase | Y（mm） | 1270 | |
| Weight | 2.1 | Service weight | kg | 620 |
| 2.2 | Axle loading, laden front/rear | kg | / | |
| 2.3 | Axle loading, unladen front/rear | kg | / | |
| Tires, chassis | 3.1 | Tires | PU | |
| 3.2 | Tire size, front | Ø×w（mm） | Ø210×70 | |
| 3.3 | Tire size, rear | Ø×w（mm） | Ø80×70 | |
| 3.4 | Additional wheels(dimensions) | Ø×w（mm） | Ø115×55 | |
| 3.5 | Wheels, number front/rear(x=driven wheels) | 1×+1/2 | ||
| 3.6 | Track, front | b10（mm） | 625 | |
| 3.7 | Track, rear | b11（mm） | 400/520 | |
| Dimensions | 4.2 | Lowered mast height | h1（mm） | 1780 |
| 4.3 | Free Lift height | h2（mm） | / | |
| 4.4 | Lift height | h3（mm） | 2410 | |
| 4.5 | Extended mast height | h4（mm） | 2960 | |
| 4.9 | Height of tiller in drive position min./max. | h14（mm） | 1090/1430 | |
| 4.15 | Height, lowered | h13（mm） | 90 | |
| 4.19 | Overall length | l1（mm） | 2030 | |
| 4.20 | Length to face of forks | l2（mm） | 880 | |
| 4.21 | Overall width | b1（mm） | 820 | |
| 4.22 | Fork dimensions | s/e/l（mm） | 55/160/1750 | |
| 4.25 | Distance between fork-arms | b5（mm） | 560/680 | |
| 4.32 | Ground clearance, centre of wheelbase | m2（mm） | 30 | |
| 4.33 | Aisle width for pallets 1000×1200 crossways | Ast（mm） | 2438 | |
| 4.34 | Aisle width for pallets 800×1200 lengthways | Ast（mm） | 2412 | |
| 4.35 | Turning radius | Wa（mm） | 1560 | |
| Performance data | 5.1 | Travel speed, laden/unladen | km/h | 4/4.5 |
| 5.2 | Lift speed, laden/unladen | m/s | 0.09/0.1 | |
| 5.3 | Lowering speed, laden/unladen | m/s | 0.1/0.09 | |
| 5.8 | Max. gradeability, laden/unladen | % | 3/5 | |
| 5.10 | Service brake | Electromagnetic | ||
| Electric engine | 6.1 | Drive motor rating S2 60min | kW | 0.75 |
| 6.2 | Lift motor rating at S3 4.5% | kW | 2.2 | |
| 6.3 | Battery acc. to DIN 43531/35/36 A, B, C, no | / | ||
| 6.4 | Battery voltage, nominal capacity K5 | V/Ah | 24/80 (100) | |
| 6.5 | Battery weight ±5% | kg | 2×25 | |
| 6.6 | Energy consumption acc：to VDI cycle | kWh/h | / | |
| Additional data | 8.1 | Type of drive control | DC speed control | |
| 8.4 | Sound level at driver's ear acc. to EN 12053 | dB(A) | 69 |
24V‑80Ah / 24V‑100Ah battery are standard options. Larger‑capacity battery can be upgraded to extend continuous working hours. Battery level can be monitored via onboard indicator.
Duplex and triplex masts are available for selection. Custom lifting height is supported. Residual load capacity decreases as lifting height rises. Please refer to load curve for actual working load.
For 800×1200 pallet, required working aisle width is 2412 mm. Max gradient is 3% under loaded condition and 5% when unloaded. It is suitable for light‑to‑medium‑intensity warehouse stacking.
