FLAG 1.2-2.0t CDD-W series electric pallet stacker
• Features 1500 KGS lithium battery power, lift height 1600–4000mm, compact short turning radius for small warehouses.

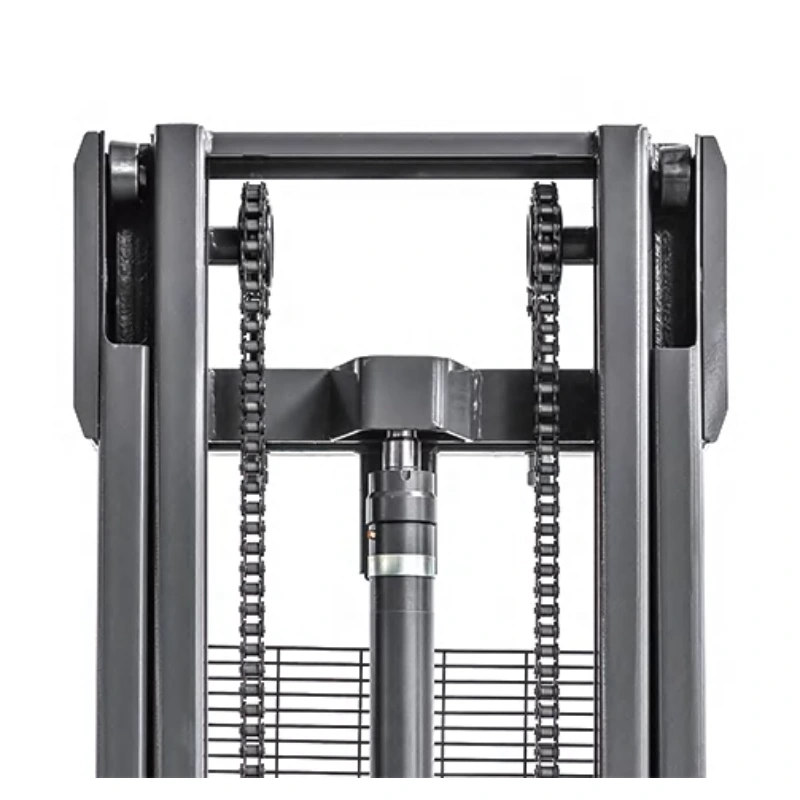

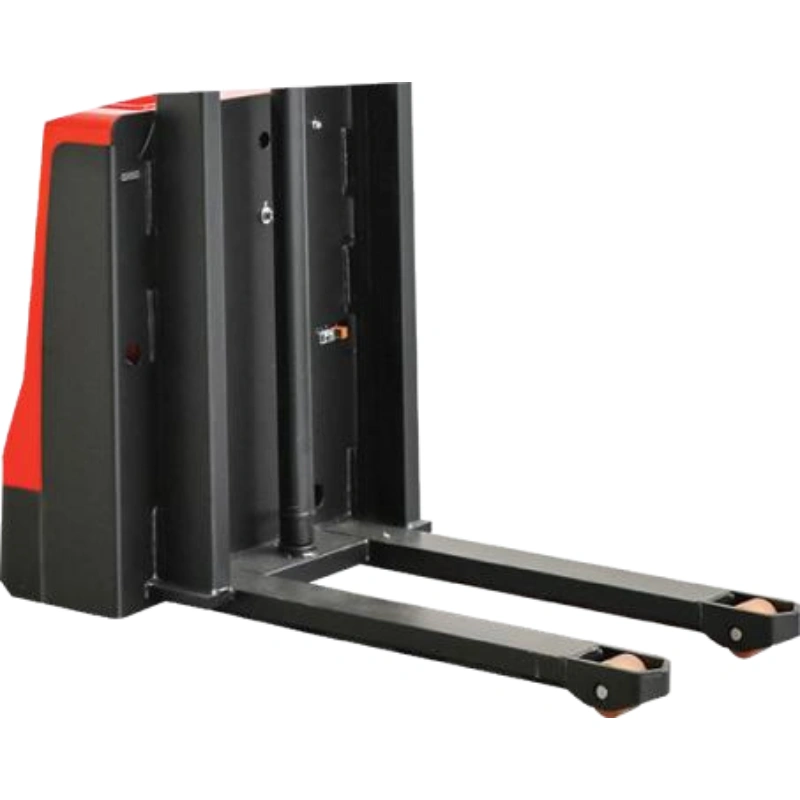

• Built with reinforced chain, thickened mast and solid metal leg.
• Long handle with multiple safety controls; pin-code handle optional.
• Simple structure enables easy inspection and service.
• Capacity: 1500 KGS, driven by lithium battery.
• Max lift height ranges from 1600 mm to 4000 mm.
• Adopts reinforced chain, thickened mast frame and solid metal leg.
• Compact design with short turning radius, suitable for small warehouse operations.
• Long handle design for easy operation.

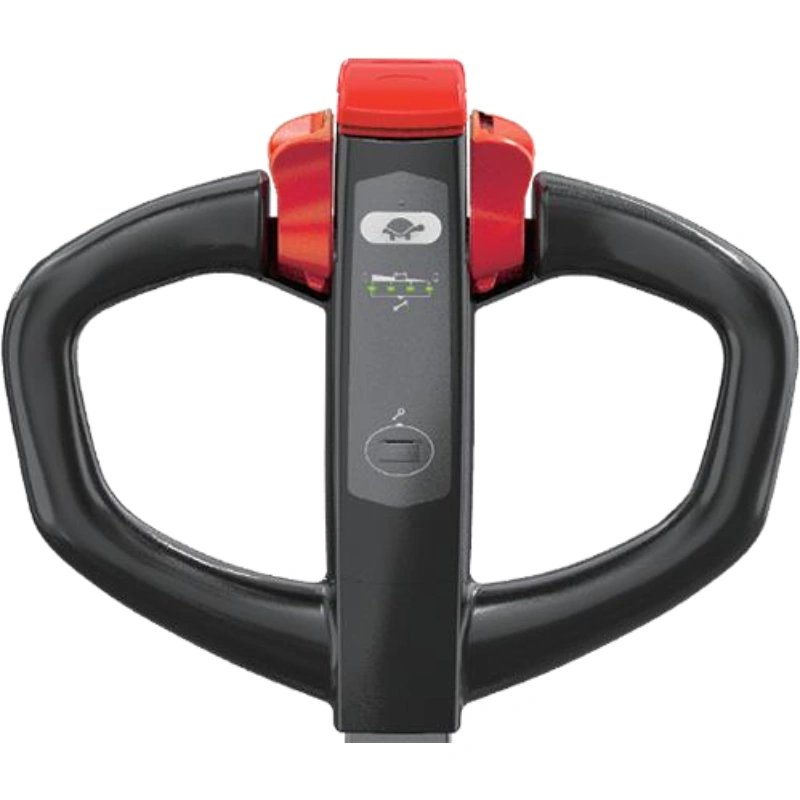

• Equipped with turtle speed, battery indicator, magnetic movable key, emergency reverse, horn and lifting & lowering control.
• Pin-code handle available as an option.
• Robust and simple structure for easy inspection and service.
| Distinguishing mark | 1.1 | Model | CDD15（ES15W） | |
| 1.3 | Power (battery, diesel, petrol, gas, manual) | |||
| 1.4 | Operator type | Pedestrian | ||
| 1.5 | Load capacity / Rated load | Q(t) | 1.5 | |
| 1.6 | Load centre distance | C(mm) | 600 | |
| 1.7 | Load distance, centre of drive axle to fork | X(mm) | 715 | |
| 1.9 | Wheelbase | Y(mm) | 1190 | |
| Weight | 2.1 | Service weight | kg | 500 |
| 2.2 | Axle loading, laden front/rear | kg | 620/1380 | |
| 2.3 | Axle loading, unladen front/rear | kg | 370/130 | |
| Tires, chassis | 3.1 | Tires | PU | |
| 3.2 | Tire size, front | Ø×w(mm) | Ø210×70 | |
| 3.3 | Tire size, rear | Ø×w(mm) | Ø80×70 | |
| 3.4 | Additional wheels(dimensions) | Ø×w(mm) | Ø150×50 | |
| 3.5 | Wheels, number front/rear(x=driven wheels) | 1×+1/4 | ||
| 3.6 | Track, front | b10(mm) | 540 | |
| 3.7 | Track, rear | b11(mm) | 400/520 | |
| Dimensions | 4.2 | Lowered mast height | h1(mm) | 1530 |
| 4.3 | Free Lift height | h2(mm) | / | |
| 4.4 | Lift height | h3(mm) | 1910 | |
| 4.5 | Extended mast height | h4(mm) | 2490 | |
| 4.9 | Height of tiller in drive position max./min. | h14(mm) | 690/1300 | |
| 4.15 | Height, lowered | h13(mm) | 90 | |
| 4.19 | Overall length | l1(mm) | 1780 | |
| 4.20 | Length to face of forks | l2(mm) | 630 | |
| 4.21 | Overall width | b1(mm) | 800 | |
| 4.22 | Fork dimensions | s/e/l(mm) | 55/160/1070 (1150) | |
| 4.25 | Distance between fork-arms | b5(mm) | 560/685 | |
| 4.32 | Ground clearance, centre of wheelbase | m2(mm) | 30 | |
| 4.33 | Aisle width for pallets 1000×1200 crossways | Ast(mm) | 2230 | |
| 4.34 | Aisle width for pallets 800×1200 lengthways | Ast(mm) | 2305 | |
| 4.35 | Turning radius | Wa(mm) | 1700 | |
| Performance data | 5.1 | Travel speed, laden/unladen | km/h | 4/4.5 |
| 5.2 | Lift speed, laden/unladen | m/s | 0.06/0.11 | |
| 5.3 | Lowering speed, laden/unladen | m/s | 0.09/0.06 | |
| 5.8 | Max. gradeability, laden/unladen | % | 3/7 | |
| 5.10 | Service brake | Electromagnetic | ||
| Electric- engine | 6.1 | Drive motor rating S2 60min | kW | 0.75 |
| 6.2 | Lift motor rating S3 4.5% | kW | 2.2 | |
| 6.3 | Battery acc. to DIN 43531/35/36 A, B, C, no | / | ||
| 6.4 | Battery voltage, nominal capacity K5 | V/Ah | 24/80 (100) | |
| 6.5 | B Battery weight ±5% | kg | 2×25 | |
| 6.6 | Energy consumption acc: to VDI cycle | kWh/h | / | |
| Additional data | 8.1 | Type of drive control | DC speed control | |
| 8.4 | Sound level at driver's ear acc. to EN 12053 | dB(A) | 69 |
Multiple 24V battery capacity options are available including 150Ah,175Ah,200Ah,230Ah,270Ah. Higher‑capacity battery can be selected to support multi‑shift continuous stacking work. Battery status can be checked on instrument panel.
Duplex and triplex masts are optional, supporting custom lifting heights up to 4000mm. Actual residual load capacity will drop as lifting height increases. Please refer to load curve for real working load data.
Duplex and triplex masts are optional, supporting custom lifting heights up to 4000mm. Actual residual load capacity will drop as lifting height increases. Please refer to load curve for real working load data.
